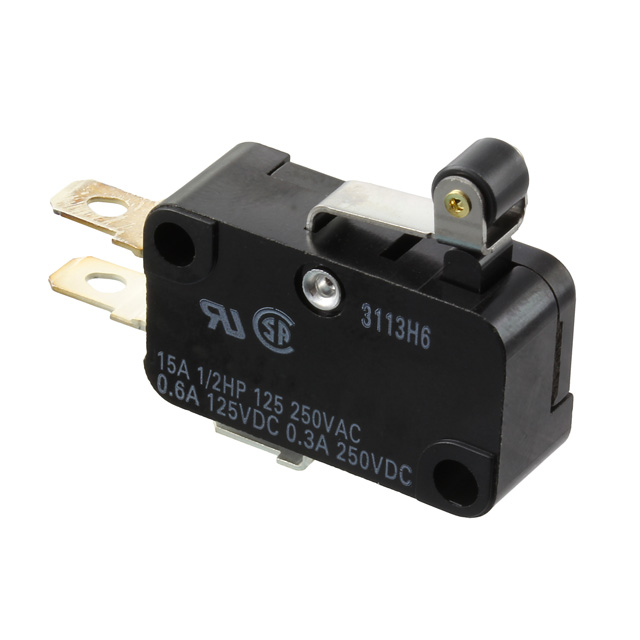

V-155-1A6-T

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 250V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Electrical Life	Mounting Type	Termination Style	Termination Style	Actuator Type	Circuit	Overtravel	Overtravel	Voltage Rating - DC	Switch Function	Pretravel	Pretravel	Differential Travel	Differential Travel	Release Force	Ingress Protection	Operating Position	Operating Position	Voltage Rating - AC	Mechanical Life	Operating Force
Omron Electronics Inc-EMC Div V-155-1A6-T	150 °C	-25 °C	15 A 600 mA	200000 Cycles	Chassis Mount	Quick Connect Solder	0.187 in 4.7 mm	Lever Roller	SPDT	0.76 mm	0.03 in	125 VDC	On-Mom	0.063 in	1.6 mm	0.6 mm	0.025 in	50 gf	IP40	0.579 in	14.7 mm	250 V	50000000 Cycles	480 gf
Omron Electronics Inc-EMC Div V-155-1A5	80 C	-25 °C	15 A 600 mA	100000 Cycles	Chassis Mount	Quick Connect Solder	0.187 in 4.7 mm	Lever Roller	SPDT	0.76 mm	0.03 in	125 VDC	On-Mom	0.063 in	1.6 mm	0.6 mm	0.025 in	50 gf	IP40	0.815 in	20.7 mm	250 V	50000000 Cycles	240 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.83

General part information

Switch SPDT Chassis Mount
