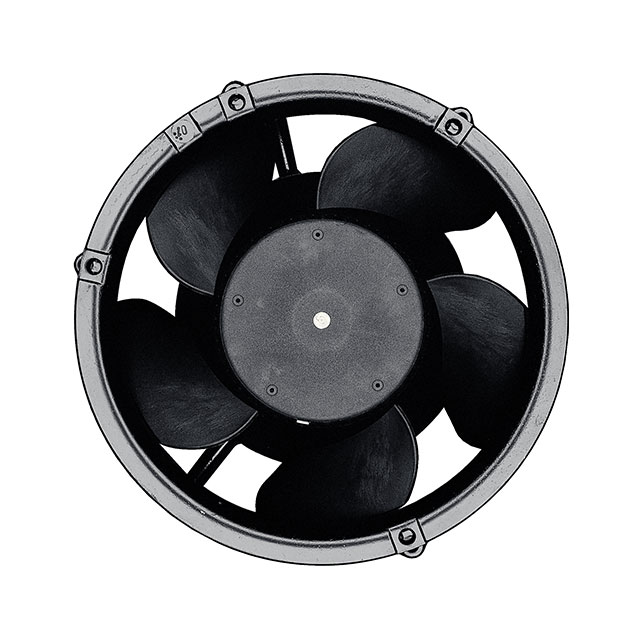

W2E143-AB15-06

Active

ebm-papst Inc.

FAN AXIAL 115VAC 172X51MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCompact Fans for AC, DC, and EC Catalog Datasheet

W2E143-AB15-06

Active

ebm-papst Inc.

FAN AXIAL 115VAC 172X51MM

Deep-Dive with AI

DocumentsCompact Fans for AC, DC, and EC Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W2E143-AB15-06

Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.26 A
Fan Type	Tubeaxial
Material - Blade	Steel
Material - Frame	Aluminum
Power (Watts)	29 W
RPM	3300 RPM
Size / Dimension	Round
Size / Dimension [diameter]	171.5 mm
Termination	2 Terminals
Voltage - Rated	115 VAC
Weight	907.2 g
Weight	2 lbs
Width [y]	51 mm

W2E143 Series

Part	Fan Type	Voltage - Rated	Weight	Weight	Material - Frame	Material - Blade	RPM	Width [y]	Power (Watts)	Termination	Size / Dimension	Size / Dimension [diameter]	Approval Agency	Bearing Type	Current Rating (Amps)	Air Flow	Air Flow	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]
ebm-papst Inc. W2E143-AB15-06	Tubeaxial	115 VAC	907.2 g	2 lbs	Aluminum	Steel	3300 RPM	51 mm	29 W	2 Terminals	Round	171.5 mm	CE CSA UL VDE	Ball	0.26 A
ebm-papst Inc. W2E143-AA15-01	Tubeaxial	115 VAC	952.5 g	2.1 lb	Aluminum	Steel	3300 RPM	51 mm	26 W	2 Terminals	Round	171.5 mm	CCC CE CSA GOST UL VDE	Ball	0.23 A	7.25 mł/min	258.9 CFM	60 dB(A)	80 °C	-40 °C	-40 °C	80 C
ebm-papst Inc. W2E143-AB09-06	Tubeaxial	230 VAC	907.2 g	2 lbs	Aluminum	Steel	3300 RPM	51 mm	29 W		Round	171.5 mm	CCC CE CSA UL VDE	Ball					75 °C	-25 °C	-25 °C	75 ░C
ebm-papst Inc. W2E143-AB09-01	Tubeaxial	230 VAC	907.2 g	2 lbs	Aluminum	Steel	3300 RPM	51 mm	30 W	2 Terminals	Round	171.5 mm	CCC CE CSA GOST UL VDE	Ball	120 mA	8.24 m³/min	294.2 CFM	58 dB(A)	80 °C	-40 °C	-40 °C	80 C
ebm-papst Inc. W2E143-AA09-25	Tubeaxial	230 VAC	1 kg	2.3 lbs	Aluminum	Steel	3300 RPM	51 mm	26 W	2 Terminals	Round	171.5 mm	CE VDE	Ball	110 mA					-25 °C	-25 °C	70 °C	70 °C
ebm-papst Inc. W2E143-AA09-01	Tubeaxial	230 VAC	997.9 g	2.2 lbs	Aluminum	Steel	3300 RPM	51 mm	26 W	2 Terminals	Round	171.5 mm	CCC CE CSA GOST UL VDE	Ball		7.25 mł/min	258.9 CFM	60 dB(A)	80 °C	-40 °C	-40 °C	80 C
ebm-papst Inc. W2E143-AB15-01	Tubeaxial	115 VAC	952.5 g	2.1 lb	Aluminum	Steel	3300 RPM	51 mm	29 W	2 Terminals	Round	171.5 mm	CCC CE CSA GOST UL VDE	Ball	0.26 A	8.24 m³/min	294.2 CFM	58 dB(A)	80 °C	-40 °C	-40 °C	80 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 138.28
		10	$ 124.27
		30	$ 122.52
		50	$ 114.65
