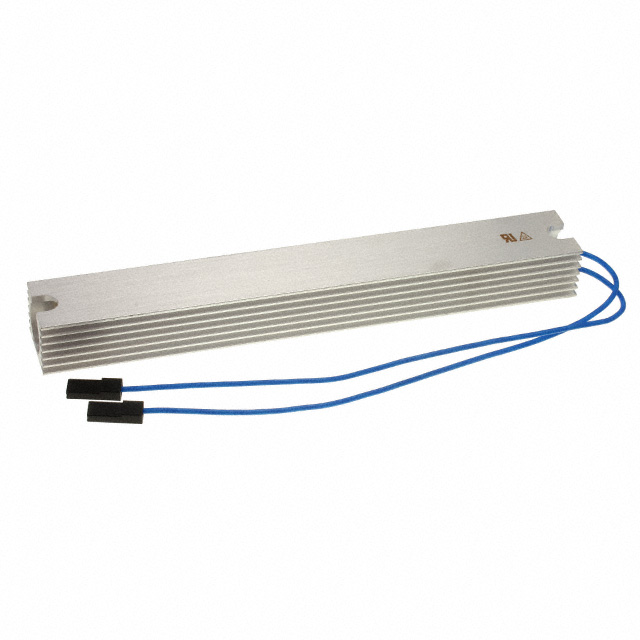

ARG400C 50R J
ActiveOhmite
RES CHAS MNT 50 OHM 5% 500W
Deep-Dive with AI
Search across all available documentation for this part.
ARG400C 50R J
ActiveOhmite
RES CHAS MNT 50 OHM 5% 500W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ARG400C 50R J |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Height - Seated (Max) [Max] [z] | 1.102 in |
| Height - Seated (Max) [Max] [z] | 28 mm |
| Lead Style | Wire Leads |
| Mounting Feature | Screw Holes |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | Rectangular, Wire Leads |
| Power (Watts) | 500 W |
| Resistance | 50 Ohms |
| Size / Dimension [x] | 260 mm |
| Size / Dimension [x] | 10.236 inches |
| Size / Dimension [y] | 36.5 mm |
| Size / Dimension [y] | 1.437 in |
| Temperature Coefficient | 150 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 75.78 | |
| 1 | $ 39.96 | |||
| 10 | $ 49.70 | |||
| 25 | $ 45.73 | |||
Description
General part information
ARG400 Series
50 Ohms ±5% 500W Wirewound Chassis Mount Resistor
Documents
Technical documentation and resources
No documents available
