K20L0C-P05LFG0-420S

Active

ODU

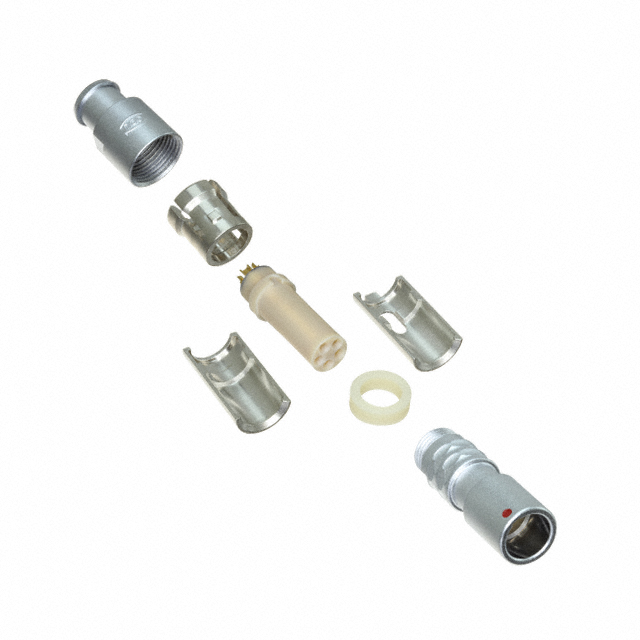

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsODU MINI-SNAP® L,K,B Series Catalog Datasheet

K20L0C-P05LFG0-420S

Active

ODU

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsODU MINI-SNAP® L,K,B Series Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K20L0C-P05LFG0-420S

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0

K20L0C-P Series

Part	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Shell Finish	Shielding	Color	Features	Connector Type	Backshell Material, Plating	Current Rating (Amps)	Applications	Shell Material	Primary Material	Insert Material	Ingress Protection	Fastening Type	Mounting Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions	Voltage Rating	Termination	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
ODU K20L0C-P03LJG0-320S	3.2 mm	0.126 in	0.079 in	2 mm	Chrome over Nickel	Shielded	Silver	Backshell Strain Relief	Receptacle Female Sockets	Brass Chrome over Nickel	7.5 A	Industrial Medical Military Testing Equipment & Measurement	Brass	Metal	Polyetheretherketone (PEEK)	IP50	Push-Pull	Free Hanging (In-Line)	Gold	-40 °C	120 °C	Brass
ODU K20L0C-P02NJH0-420S					Chrome over Nickel	Unshielded	Silver	Backshell Strain Relief	Receptacle Female Sockets	Brass Chrome over Nickel	10 A	Industrial Medical Military Testing Equipment & Measurement	Brass	Metal	Polyetheretherketone (PEEK)	IP50	Push-Pull	Free Hanging (In-Line)	Gold	-40 °C	120 °C	Brass	2	366 V	Crimp
ODU K20L0C-P03LJG0-420S					Chrome over Nickel		Silver	Backshell Strain Relief	Receptacle Female Sockets	Brass Chrome over Nickel	7.5 A	Industrial Medical Military Testing Equipment & Measurement	Brass	Metal	Polyetheretherketone (PEEK)	IP50	Push-Pull	Free Hanging (In-Line)	Gold	-40 °C	120 °C	Brass
ODU K20L0C-P04NFG0-420S					Chrome over Nickel	Unshielded	Silver	Backshell Strain Relief	Receptacle Female Sockets	Brass Chrome over Nickel	7.5 A	Industrial Medical Military Testing Equipment & Measurement	Brass	Metal	Polyetheretherketone (PEEK)	IP50	Push-Pull	Free Hanging (In-Line)	Gold	-40 °C	120 °C	Brass	4	300 VDC	Crimp
ODU K20L0C-P07LCC0-320S	3.2 mm	0.126 in	0.079 in	2 mm	Chrome over Nickel	Shielded	Silver	Backshell Strain Relief	Receptacle Female Sockets	Brass Chrome over Nickel	4 A	Industrial Medical Military Testing Equipment & Measurement	Brass	Metal	Polyetheretherketone (PEEK)	IP50	Push-Pull	Free Hanging (In-Line)	Gold	-40 °C	120 °C	Brass	7
ODU K20L0C-P05NFG0-520S					Chrome over Nickel	Unshielded	Silver	Backshell Strain Relief	Receptacle Female Sockets	Brass Chrome over Nickel	7.5 A	Industrial Medical Military Testing Equipment & Measurement	Brass	Metal	Polyetheretherketone (PEEK)	IP50	Push-Pull	Free Hanging (In-Line)	Gold	-40 °C	120 °C	Brass		200 V	Crimp	0.157 in	0.205 in	4 mm	5.2 mm
ODU K20L0C-P03LJG0-520S					Chrome over Nickel		Silver	Backshell Strain Relief	Receptacle Female Sockets	Brass Chrome over Nickel	7.5 A	Industrial Medical Military Testing Equipment & Measurement	Brass	Metal	Polyetheretherketone (PEEK)	IP50	Push-Pull	Free Hanging (In-Line)	Gold	-40 °C	120 °C	Brass				0.157 in	0.205 in	4 mm	5.2 mm
ODU K20L0C-P05LFG0-420S					Chrome over Nickel		Silver	Backshell Strain Relief	Receptacle Female Sockets	Brass Chrome over Nickel	7.5 A	Industrial Medical Military Testing Equipment & Measurement	Brass	Metal	Polyetheretherketone (PEEK)	IP50	Push-Pull	Free Hanging (In-Line)	Gold	-40 °C	120 °C	Brass
ODU K20L0C-P02NJH0-560S					Chrome over Nickel	Unshielded	Silver	Backshell Strain Relief	Receptacle Female Sockets	Brass Chrome over Nickel	10 A	Industrial Medical Military Testing Equipment & Measurement	Brass	Metal	Polyetheretherketone (PEEK)	IP50	Push-Pull	Free Hanging (In-Line)	Gold	-40 °C	120 °C	Brass	2	366 V	Crimp	0.197 in	0.22 in	5 mm	5.6 mm
ODU K20L0C-P10LCC9-520S					Chrome over Nickel		Silver	Backshell Strain Relief	Receptacle Female Sockets	Brass Chrome over Nickel	4 A	Industrial Medical Military Testing Equipment & Measurement	Brass	Metal	Polyetheretherketone (PEEK)	IP50	Push-Pull	Free Hanging (In-Line)	Gold	-40 °C	120 °C	Brass	10			0.157 in	0.205 in	4 mm	5.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.89

Description

General part information

K20L0C-P Series

5 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

ODU MINI-SNAP® L,K,B Series Catalog

Datasheet
