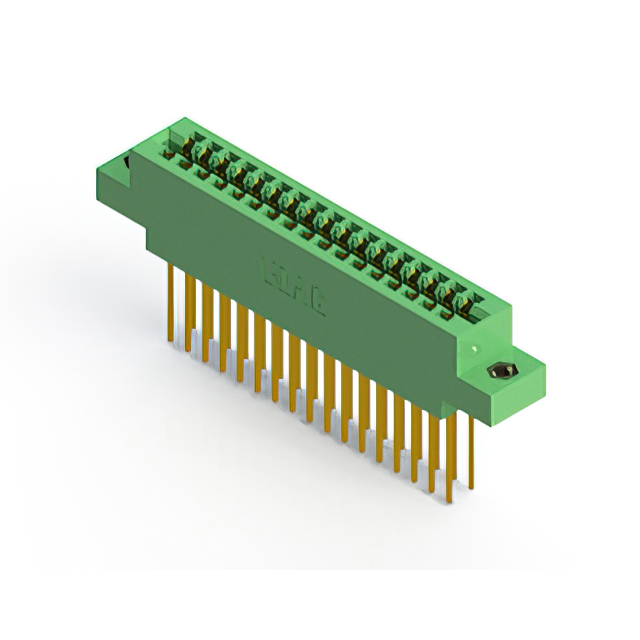

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 34 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN

317-034-540-878

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 34 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	317-034-540-878

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	34
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap

317-034 Series

Part	Contact Material	Flange Feature	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Features	Contact Type	Read Out	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Mounting Type	Material - Insulation	Number of Positions	Termination	Gender	Number of Rows	Contact Finish	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 317-034-540-878	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides	Cantilever	Dual	10 Áin	0.25 Ám	0.156 in	3.96 mm	125 °C	-65 ░C	Green	Through Hole	Diallyl Phthalate (DAP)	34	Wire Wrap	Female	2	Gold
EDAC Inc. 317-034-541-678	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides	Cantilever	Single	10 Áin	0.25 Ám	0.156 in	3.96 mm	125 °C	-65 ░C	Green	Through Hole	Diallyl Phthalate (DAP)	68	Wire Wrap	Female	2	Gold	34
EDAC Inc. 317-034-540-808	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		Cantilever	Dual	10 Áin	0.25 Ám	0.156 in	3.96 mm	125 °C	-65 ░C	Green	Through Hole	Diallyl Phthalate (DAP)	34	Wire Wrap	Female	2	Gold
EDAC Inc. 317-034-541-602	Copper Alloy		Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		Cantilever	Single	10 Áin	0.25 Ám	0.156 in	3.96 mm	125 °C	-65 ░C	Green	Through Hole	Diallyl Phthalate (DAP)	68	Wire Wrap	Female	2	Gold	34
EDAC Inc. 317-034-540-807	Copper Alloy	M3 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		Cantilever	Dual	10 Áin	0.25 Ám	0.156 in	3.96 mm	125 °C	-65 ░C	Green	Through Hole	Diallyl Phthalate (DAP)	34	Wire Wrap	Female	2	Gold
EDAC Inc. 317-034-542-808	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		Cantilever	Dual	10 Áin	0.25 Ám	0.156 in	3.96 mm	125 °C	-65 ░C	Green	Through Hole	Diallyl Phthalate (DAP)	34	Wire Wrap	Female	2	Gold
EDAC Inc. 317-034-541-608	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		Cantilever	Single	10 Áin	0.25 Ám	0.156 in	3.96 mm	125 °C	-65 ░C	Green	Through Hole	Diallyl Phthalate (DAP)	68	Wire Wrap	Female	2	Gold	34
EDAC Inc. 317-034-542-803	Copper Alloy	Floating Bobbin Flush Mount	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		Cantilever	Dual	10 Áin	0.25 Ám	0.156 in	3.96 mm	125 °C	-65 ░C	Green	Through Hole	Diallyl Phthalate (DAP)	34	Wire Wrap	Female	2	Gold		0.116 in	2.95 mm
EDAC Inc. 317-034-541-607	Copper Alloy	M3 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		Cantilever	Single	10 Áin	0.25 Ám	0.156 in	3.96 mm	125 °C	-65 ░C	Green	Through Hole	Diallyl Phthalate (DAP)	68	Wire Wrap	Female	2	Gold	34
EDAC Inc. 317-034-542-801	Copper Alloy		Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		Cantilever	Dual	10 Áin	0.25 Ám	0.156 in	3.96 mm	125 °C	-65 ░C	Green	Through Hole	Diallyl Phthalate (DAP)	34	Wire Wrap	Female	2	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 57.66
Newark	Each	1	$ 69.22
		100	$ 60.57
		250	$ 53.84
		500	$ 48.45
		1000	$ 37.02

Description

General part information

317-034 Series

34 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
