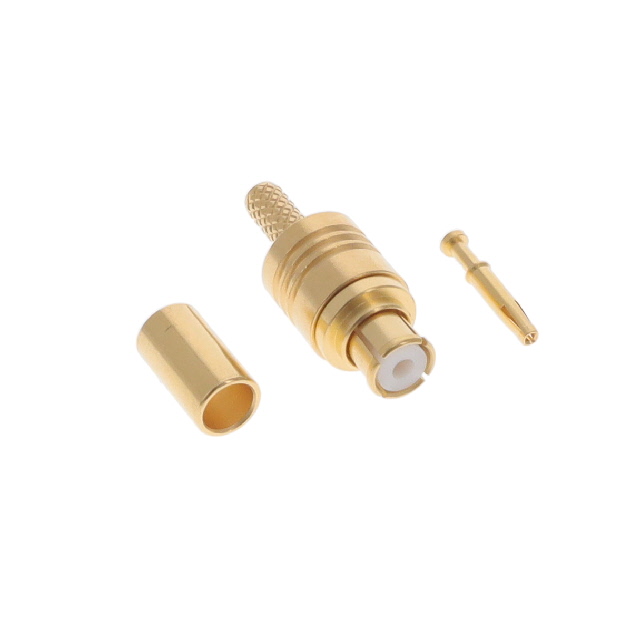

R222M80400

Active

Radiall USA, Inc.

SMP-MAX / STRAIGHT FEMALE PLUG C

Deep-Dive with AI

Search across all available documentation for this part.

R222M80400

Active

Radiall USA, Inc.

SMP-MAX / STRAIGHT FEMALE PLUG C

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R222M80400

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	335 V

R222M Series

Part	Center Contact Plating	Shield Termination	Body Material	Connector Type	Contact Termination	Voltage Rating	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Housing Color	Center Contact Material	Fastening Type	Frequency - Max [Max]	Mounting Type	Number of Ports	Dielectric Material	Cable Group	Style	Conversion Type	Adapter Type	Adapter Series	Convert From (Adapter End)	Center Gender	Convert To (Adapter End)
Radiall USA, Inc. R222M00160	Gold	Solder	Beryllium Copper Brass	Male Pin Receptacle	Solder	330 VDC	50 Ohms	165 °C	-55 °C	Gold	Gold	Brass	Snap-On	6000 MHz	Through Hole	1
Radiall USA, Inc. R222M10107
Radiall USA, Inc. R222M00080W	Gold	Solder	Brass	Male Pin Receptacle	Solder	335 V	50 Ohms	165 °C	-55 °C	Gold	Gold	Brass	Snap-On	6000 MHz	Through Hole	1	Liquid Crystal Polymer (LCP) Polyetheretherketone (PEEK)
Radiall USA, Inc. R222M80400	Gold	Crimp	Brass	Female Socket Plug	Crimp	335 V	50 Ohms	165 °C	-55 °C	Gold	Gold	Beryllium Copper	Snap-On	6000 MHz	Free Hanging (In-Line)	1	Polytetrafluoroethylene (PTFE)	316 RG-174
Radiall USA, Inc. R222M00720	Gold	Solder	Brass	Male Pin Receptacle	Solder	335 V	50 Ohms	165 °C	-55 °C	Gold	Gold	Brass	Snap-On	6000 MHz	Through Hole	1	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R222M40050W	Gold		Brass				50 Ohms	165 °C	-55 °C	Gold		Beryllium Copper	Snap-On	6000 MHz	Free Hanging (In-Line)		Polytetrafluoroethylene (PTFE)		Straight	Same Series	Jack to Jack	SMP to SMP	SMP Jack Female Socket	Female to Female	Female Socket SMP Jack
Radiall USA, Inc. R222M00080	Gold	Solder	Brass	Male Pin Receptacle	Solder	335 V	50 Ohms	165 °C	-55 °C	Gold	Gold	Brass	Snap-On	6000 MHz	Through Hole	1	Polyetheretherketone (PEEK)
Radiall USA, Inc. R222M00740	Gold	Solder	Brass	Male Pin Receptacle	Solder	335 V	50 Ohms	165 °C	-55 °C	Gold	Gold	Brass	Snap-On	10 GHz	Surface Mount	1	Liquid Crystal Polymer (LCP) Polyetheretherketone (PEEK)
Radiall USA, Inc. R222M00740W	Gold	Solder	Brass	Male Pin Receptacle	Solder	335 V	50 Ohms	165 °C	-55 °C	Gold	Gold	Brass	Snap-On	6000 MHz	Surface Mount	1	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R222M46032	Gold		Beryllium Copper				50 Ohms	165 °C	-55 °C	Gold		Beryllium Copper	Snap-On	10 GHz	Free Hanging (In-Line)		Polytetrafluoroethylene (PTFE)		Straight	Same Series	Jack to Jack	SMP to SMP	SMP Jack Female Socket	Female to Female	Female Socket SMP Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.62
		10	$ 14.73
		25	$ 14.17
		50	$ 13.60
		100	$ 12.84
		300	$ 11.71
		500	$ 10.95

Description

General part information

R222M Series

SMP Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available
