415-0204-012

Active

Cinch Connectivity Solutions Johnson

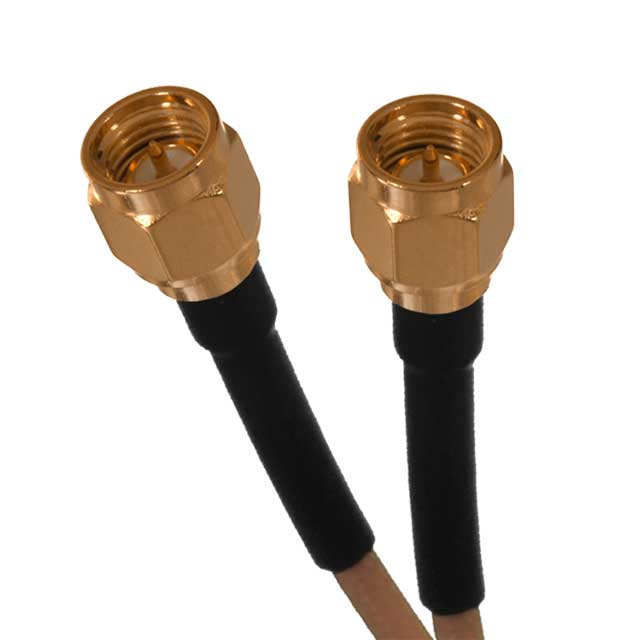

CBL ASSY SMA PLUG TO PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

415-0204-012

Active

Cinch Connectivity Solutions Johnson

CBL ASSY SMA PLUG TO PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	415-0204-012

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	SMA to SMA

415-0204 Series

Part	Features	1st Connector	Cable Type	Cable Impedance	2nd Connector Mounting Type	Style	1st Connector Mounting Type	Connector Impedance	Color	2nd Connector	1st Contact Gender	Overall Impedance	Length	Length	2nd Contact Gender	Length	Length [x]	Length [x]
Cinch Connectivity Solutions Johnson 415-0204-012	Shielded	SMA Plug	RG-174	50 Ohms	Free Hanging (In-Line)	SMA to SMA	Free Hanging (In-Line)	50 Ohms	Copper	SMA Plug	Male	50 Ohms	12 "	304.8 mm	Male
Cinch Connectivity Solutions Johnson 415-0204-060	Shielded	SMA Plug	RG-174	50 Ohms	Free Hanging (In-Line)	SMA to SMA	Free Hanging (In-Line)	50 Ohms	Copper	SMA Plug	Male	50 Ohms	5 '	1.5 m	Male	5 ft
Cinch Connectivity Solutions Johnson 415-0204-MM200	Shielded	SMA Plug	RG-174	50 Ohms	Free Hanging (In-Line)	SMA to SMA	Free Hanging (In-Line)	50 Ohms	Copper	SMA Plug	Male	50 Ohms	7.874 in	200 mm	Male
Cinch Connectivity Solutions Johnson 415-0204-M1.0	Shielded	SMA Plug	RG-174	50 Ohms	Free Hanging (In-Line)	SMA to SMA	Free Hanging (In-Line)	50 Ohms	Copper	SMA Plug	Male	50 Ohms	39.4 in	1 m	Male	3.3 ft
Cinch Connectivity Solutions Johnson 415-0204-MM500	Shielded	SMA Plug	RG-174	50 Ohms	Free Hanging (In-Line)	SMA to SMA	Free Hanging (In-Line)	50 Ohms	Copper	SMA Plug	Male	50 Ohms	19.69 "	50 cm	Male
Cinch Connectivity Solutions Johnson 415-0204-MM100	Shielded	SMA Plug	RG-174	50 Ohms	Free Hanging (In-Line)	SMA to SMA	Free Hanging (In-Line)	50 Ohms	Copper	SMA Plug	Male	50 Ohms			Male		0.1 m	3.937 in
Cinch Connectivity Solutions Johnson 415-0204-036	Shielded	SMA Plug	RG-174	50 Ohms	Free Hanging (In-Line)	SMA to SMA	Free Hanging (In-Line)	50 Ohms	Copper	SMA Plug	Male	50 Ohms	36 in	91.44 cm	Male
Cinch Connectivity Solutions Johnson 415-0204-024	Shielded	SMA Plug	RG-174	50 Ohms	Free Hanging (In-Line)	SMA to SMA	Free Hanging (In-Line)	50 Ohms	Copper	SMA Plug	Male	50 Ohms	24 "	609.6 mm	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 18.35
		10	$ 15.90
		25	$ 15.07
		50	$ 14.85
		100	$ 13.10
		250	$ 12.23
		500	$ 11.97

Description

General part information

415-0204 Series

Cable Assembly Coaxial SMA to SMA RG-174 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
