98511.9

Active

Conta-Clip, Inc.

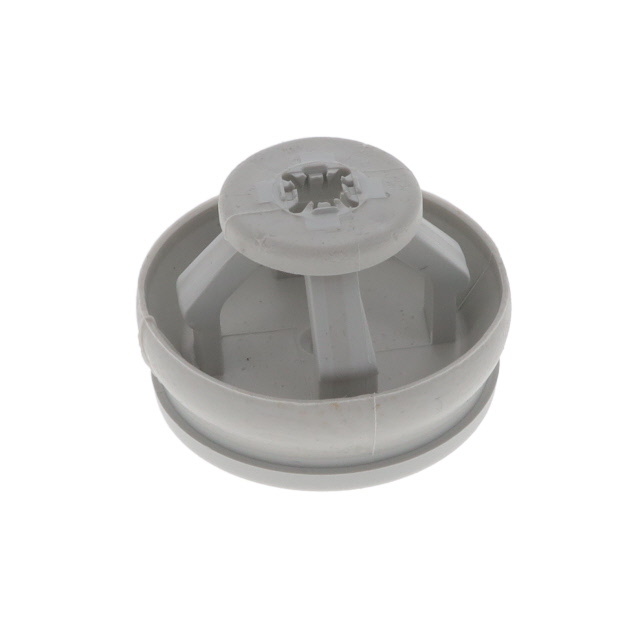

M16 CLIXX, POLYAMIDE LIGHT

Search across all available documentation for this part.

Active

Conta-Clip, Inc.

M16 CLIXX, POLYAMIDE LIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	98511.9

Bushing, Grommet Type	Grommet
For Use With/Related Products	Wires, Cable
Panel Cutout Dimensions [diameter]	0.657 in
Panel Cutout Dimensions [diameter]	16.7 mm
Panel Thickness [Max]	0.15 in
Panel Thickness [Max]	3.51 mm
Panel Thickness [Min]	0.79 mm
Panel Thickness [Min]	0.031 "

Part	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	For Use With/Related Products	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Bushing, Grommet Type	Thread Length	Thread Length	Ingress Protection	Color	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size	Panel Hole Size	Thread Size
Conta-Clip, Inc. 98511.9	0.657 in	16.7 mm	Cable Wires	0.15 in	3.51 mm	0.79 mm	0.031 "	Grommet
Conta-Clip, Inc. 98511.6									0.24 in	6.1 mm	IP65 - Dust Tight Water Resistant	Silver	Brass Nickel Plated	0.43 in	10.92 mm	Cable Gland	4.06 mm	0.16 in	0.61 in	15.5 mm	PG9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular - 0.657" (16.70mm) Grommet
