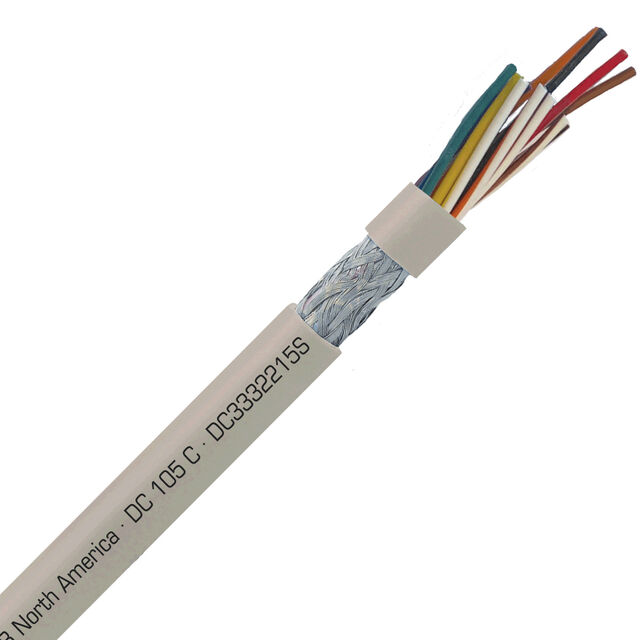

DC3332215S

Active

SAB North America

CABLE 15COND 22AWG GRY SHD 1=1FT

Search across all available documentation for this part.

Active

SAB North America

CABLE 15COND 22AWG GRY SHD 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3332215S

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.339 in
Jacket (Insulation) Diameter [diameter]	8.61 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	15
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

Part	Cable Type	Length	Shield Material	Jacket (Insulation) Material	Jacket Color	Wire Gauge	Voltage	Shield Type	Conductor Material	Conductor Insulation	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Features	Operating Temperature [Min]	Operating Temperature [Max]
SAB North America DC3332215S	Multi-Conductor	Enter Number of Feet in Order Quantity	Copper Tinned	Poly-Vinyl Chloride (PVC)	Gray	22 AWG	300 V	Braid Foil	Copper Tinned	Poly-Vinyl Chloride (PVC)	15	0.339 in	8.61 mm	7	30 AWG	Drain Wire	-25 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Conductor Multi-Conductor Cable Gray 22 AWG Foil, Braid Enter Number of Feet in Order Quantity

Technical documentation and resources
