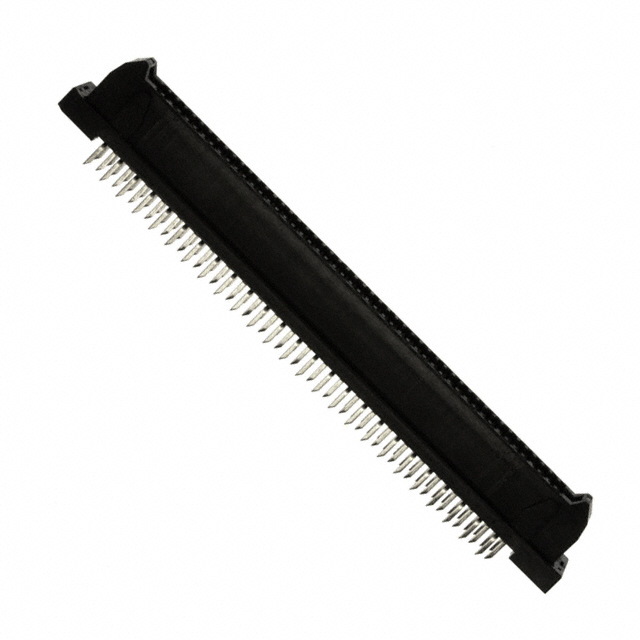

TX24-100R-6ST-N1E

Active

JAE Electronics

CONN RCPT 100POS VERT GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 100POS VERT GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	TX24-100R-6ST-N1E

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	0.406 in
Height Above Board	10.3 mm
Mated Stacking Heights	12 mm, 14 mm, 18 mm
Mounting Type	Through Hole
Number of Positions	100
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

Part	Height Above Board	Height Above Board	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Connector Type	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness
JAE Electronics TX24-100R-6ST-N1E	0.406 in	10.3 mm	Gold	2	0.05 in	1.27 mm	100	Through Hole	Receptacle Outer Shroud Contacts	12 mm 14 mm 18 mm	4 Áin	0.1 Ám
JAE Electronics TX24-100R-LT-H1E	0.354 in	9 mm	Gold	2	0.05 in	1.27 mm	100	Through Hole Right Angle	Receptacle Outer Shroud Contacts		4 Áin	0.1 Ám
JAE Electronics TX24-100R-10ST-H1E	0.563 in	14.3 mm	Gold	2	0.05 in	1.27 mm	100	Through Hole	Receptacle Outer Shroud Contacts	16 mm 18 mm 22 mm	4 Áin	0.1 Ám
JAE Electronics TX24-100R-6ST-H1E	0.406 in	10.3 mm	Gold	2	0.05 in	1.27 mm	100	Through Hole	Receptacle Outer Shroud Contacts	12 mm 14 mm 18 mm	4 Áin	0.1 Ám
JAE Electronics TX24-100R-10ST-N1E	0.563 in	14.3 mm	Gold	2	0.05 in	1.27 mm	100	Through Hole	Receptacle Outer Shroud Contacts	16 mm 18 mm 22 mm	4 Áin	0.1 Ám
JAE Electronics TX24-100R-12ST-H1E	0.642 in	16.3 mm	Gold	2	0.05 in	1.27 mm	100	Through Hole	Receptacle Outer Shroud Contacts	18 mm 20 mm 24 mm	4 Áin	0.1 Ám
JAE Electronics TX24-100R-LT-N1E	0.354 in	9 mm	Gold	2	0.05 in	1.27 mm	100	Through Hole Right Angle	Receptacle Outer Shroud Contacts		4 Áin	0.1 Ám
JAE Electronics TX24-100R-12ST-N1E	0.642 in	16.3 mm	Gold	2	0.05 in	1.27 mm	100	Through Hole	Receptacle Outer Shroud Contacts	18 mm 20 mm 24 mm	4 Áin	0.1 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 2.09

General part information

100 Position Connector Receptacle, Outer Shroud Contacts Through Hole Gold
