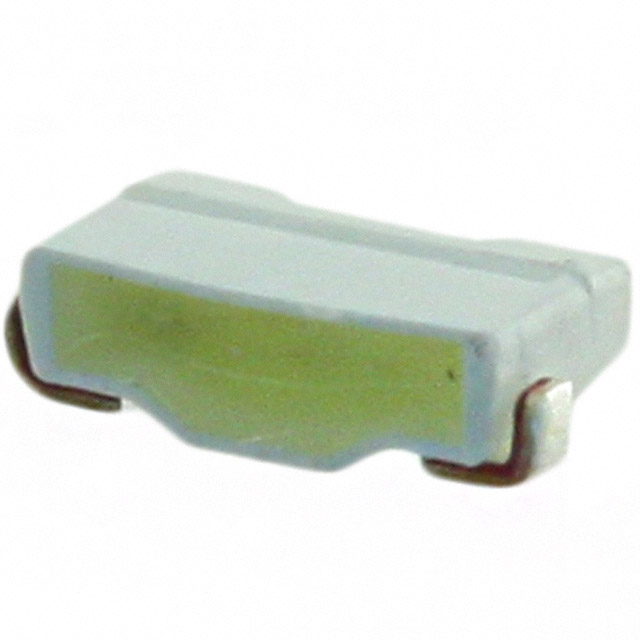

LW Y1SG-BFCF-EKFM-1-Z
Obsoleteams-OSRAM USA INC.
LED COOL WHITE DIFFUSED SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LW Y1SG-BFCF-EKFM-1-Z
Obsoleteams-OSRAM USA INC.
LED COOL WHITE DIFFUSED SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LW Y1SG-BFCF-EKFM-1-Z |
|---|---|
| Color | Cool, White |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 0.9 mm |
| Lens Color | Yellow |
| Lens Size [x] | 1.8 mm |
| Lens Size [y] | 0.6 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 1900 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 2.8 mm |
| Size / Dimension [y] | 1.2 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 8200 K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LWY1SG Series
White, Cool 8200K LED Indication - Discrete 3.3V 2-SMD, No Lead
