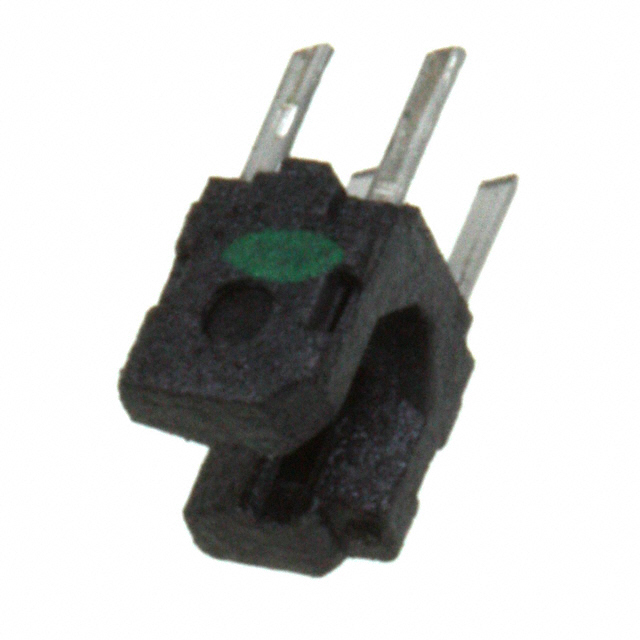

GP1S196HCZ0F

Active

SHARP/Socle Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Search across all available documentation for this part.

Active

SHARP/Socle Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Technical Specifications

Parameters and characteristics for this part

Specification	GP1S196HCZ0F

Current - Collector (Ic) (Max) [Max]	20 mA
Current - DC Forward (If) (Max) [Max]	30 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Phototransistor
Package / Case	PCB Mount
Response Time	50 µs
Sensing Distance	0.043 in
Sensing Distance	1.1 mm
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	35 V

Part	Current - DC Forward (If) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Type	Output Configuration	Package / Case	Current - Collector (Ic) (Max) [Max]	Sensing Distance	Sensing Distance	Response Time	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]
SHARP/Socle Technology GP1S196HCZ0F	30 mA	35 V	Through Hole	Unamplified	Phototransistor	PCB Mount	20 mA	0.043 in	1.1 mm	50 µs	Through-Beam	-25 °C	85 °C
SHARP/Socle Technology GP1S196HCPSF	30 mA	35 V	Surface Mount		Phototransistor	4-SMD	20 mA	0.043 in	1.1 mm	50 µs	Through-Beam	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam 0.043" (1.1mm) Phototransistor PCB Mount
