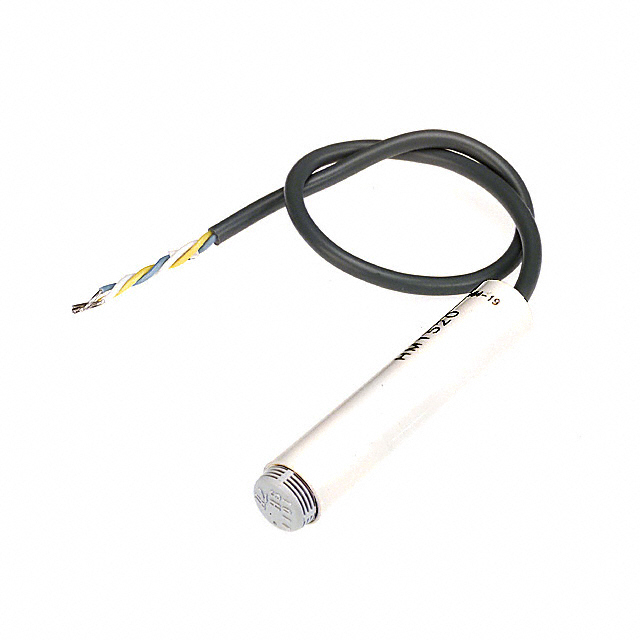

HM1520
ObsoleteTE Connectivity Measurement Specialties
SENSOR HUMIDITY 5V ANLG 2% MOD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HM1520
ObsoleteTE Connectivity Measurement Specialties
SENSOR HUMIDITY 5V ANLG 2% MOD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HM1520 |
|---|---|
| Accuracy | 2 % |
| Humidity Range [Max] | 99 % RH |
| Humidity Range [Min] | 1 % RH |
| Mounting Type | User Defined |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Output | 1.5 V |
| Output Type | Analog Voltage |
| Response Time | 5 s |
| Sensitivity | 26 mV/%RH |
| Sensor Type | Humidity |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HM1 Series
Humidity 1 ~ 99% RH Analog Voltage ±2% RH 5 s User Defined
Documents
Technical documentation and resources
