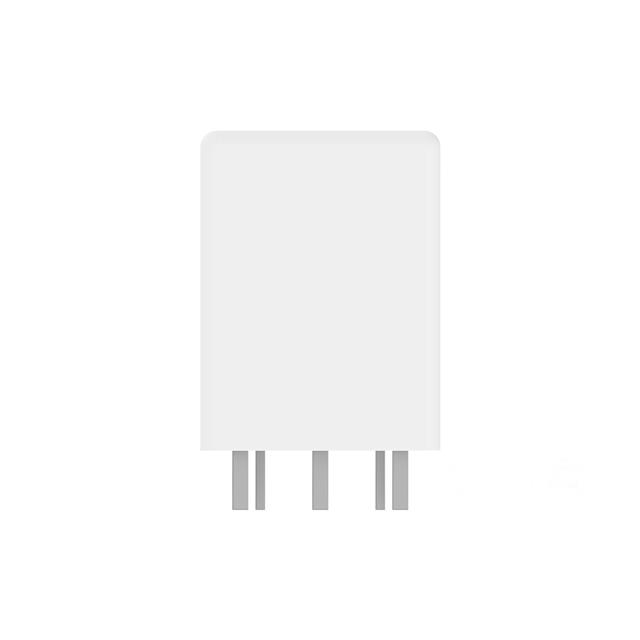

8-1415077-1
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 10A 9V
Deep-Dive with AI
Search across all available documentation for this part.
8-1415077-1
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 10A 9V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-1415077-1 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 40 mA |
| Coil Insulation | Class F |
| Coil Resistance | 225 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 9 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 4000 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 6.75 VDC |
| Must Release Voltage | 0.9 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1050 | $ 2.08 | |
Description
General part information
PB1140 Series
General Purpose Relay SPDT (1 Form C) 9VDC Coil Socketable
