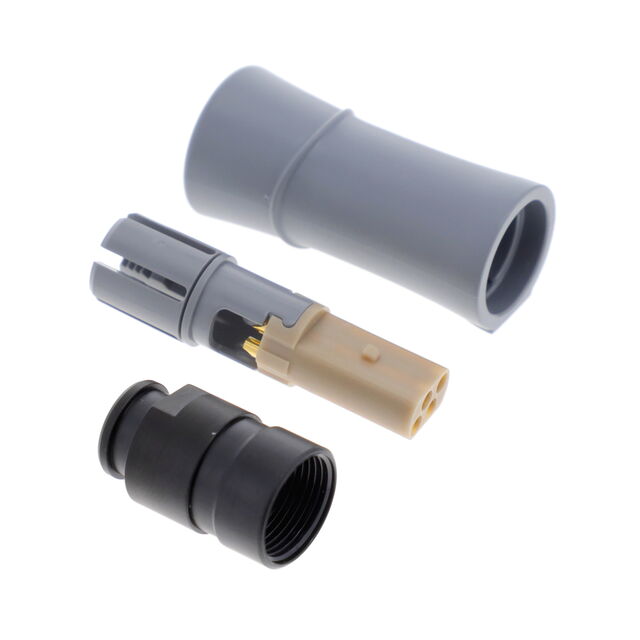

SRP.M04.GLL.5NZ
ActiveLEMO
CONN RCPT FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRP.M04.GLL.5NZ
ActiveLEMO
CONN RCPT FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRP.M04.GLL.5NZ |
|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Backshell Material, Plating | Sulfone |
| Cable Opening [Max] [custom] | 0.205 in |
| Cable Opening [Max] [custom] | 5.2 mm |
| Cable Opening [Min] [custom] | 0.157 in |
| Cable Opening [Min] [custom] | 4 mm |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 11.5 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -50 °C |
| Orientation | P |
| Primary Material | Plastic |
| Shell Material | Sulfone |
| Shell Size - Insert | M04 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.38 | |
| 10 | $ 19.60 | |||
| 25 | $ 18.75 | |||
| 50 | $ 18.15 | |||
| 100 | $ 17.54 | |||
| 250 | $ 16.58 | |||
| 500 | $ 16.09 | |||
Description
General part information
SRP.M0 Series
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
