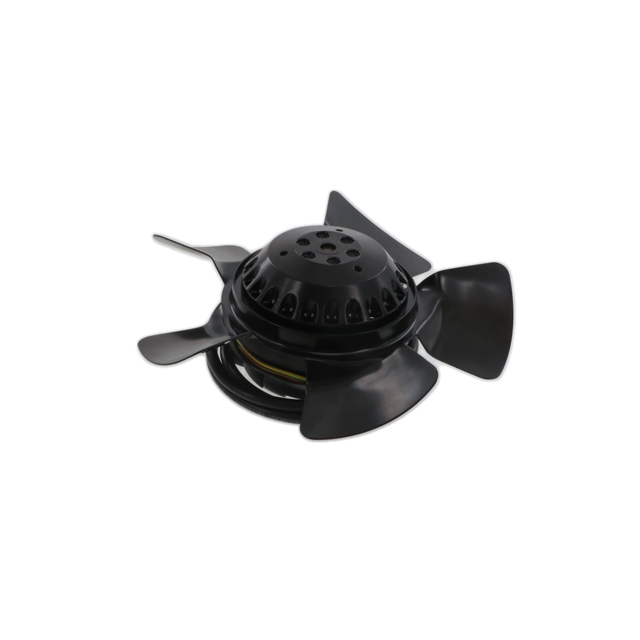

A2E200-AF02-53

Active

ebm-papst Inc.

AC AXIAL FAN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A2E200-AF02-53

Active

ebm-papst Inc.

AC AXIAL FAN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A2E200-AF02-53

Approval Agency	UL, CE
Bearing Type	Ball
Current Rating (Amps)	0.28 A
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Operating Temperature [Max]	75 °C
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
RPM	3120 RPM
Size / Dimension [diameter]	195 mm
Static Pressure	200 Pa
Static Pressure	0.803 in H2O
Termination	4 Wire Leads with Splice Terminals
Voltage - Rated	230 VAC
Width [y]	70 mm

A2E200 Series

Part	Approval Agency	Voltage - Rated	Fan Type	Bearing Type	Ingress Protection	RPM	Size / Dimension [diameter]	Features	Power (Watts)	Material - Blade	Termination	Current Rating (Amps)	Width [x]	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Air Flow	Air Flow	Noise
ebm-papst Inc. A2E200-AA19-51	CE UL	115 VAC	Tubeaxial	Ball	IP44	2900 RPM	195 mm	Capacitor Thermal Overload Protector (TOP)	82 W	Steel	4 Wire Leads with Splice Terminals	0.7 A	74.5 mm
ebm-papst Inc. A2E200-AF02-53	CE UL	230 VAC	Tubeaxial	Ball	IP44	3120 RPM	195 mm	Capacitor Thermal Overload Protector (TOP)		Steel	4 Wire Leads with Splice Terminals	0.28 A		70 mm	75 °C	75 ░C	-25 °C	-25 °C	200 Pa	0.803 in H2O
ebm-papst Inc. A2E200-AH38-01	CCC CE EAC	230 VAC	Tubeaxial	Ball	IP44	2900 RPM	197 mm	Capacitor Thermal Overload Protector (TOP)	78 W	Steel	4 Wire Leads with Splice Terminals	0.34 A		65.5 mm	65 °C	65 °C	-25 °C	-25 °C	150 Pa	0.602 in H2O	14.68 m³/min	542.2 CFM	65 dB
ebm-papst Inc. A2E200-AF02-54		230 VAC	Tubeaxial	Ball	IP44	3120 RPM	195 mm	Capacitor Thermal Overload Protector (TOP)		Steel	4 Wire Leads with Splice Terminals	0.28 A		70 mm	75 °C	75 ░C	-25 °C	-25 °C	200 Pa	0.803 in H2O
ebm-papst Inc. A2E200-AF02-02	CCC CE EAC	230 VAC	Tubeaxial	Ball	IP44	3120 RPM	195 mm	Capacitor Thermal Overload Protector (TOP)		Steel	4 Wire Leads with Splice Terminals	0.28 A		70 mm	75 °C	75 ░C	-25 °C	-25 °C	200 Pa	0.803 in H2O	13.69 mł/min	488.9 CFM
ebm-papst Inc. A2E200-AH38-70	CE CSA UL	230 VAC	Tubeaxial	Ball	IP44	2900 RPM	197 mm	Capacitor Thermal Overload Protector (TOP)	90 W	Steel	4 Wire Leads with Splice Terminals	390 mA		65.5 mm	65 °C	65 °C	-25 °C	-25 °C	149.5 Pa	0.6 in H2O
ebm-papst Inc. A2E200-AF02-01	CCC CE EAC	230 VAC	Tubeaxial	Ball	IP44	3120 RPM	195 mm	Capacitor Thermal Overload Protector (TOP)		Steel	4 Wire Leads with Splice Terminals	0.28 A		70.5 mm	75 °C	75 ░C	-25 °C	-25 °C	200 Pa	0.803 in H2O	12.2 m³/min	435.9 CFM	65 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 169.50

Description

General part information

A2E200 Series

Fan Tubeaxial 230VAC Round - 195mm Dia Ball 4 Wire Leads with Splice Terminals
