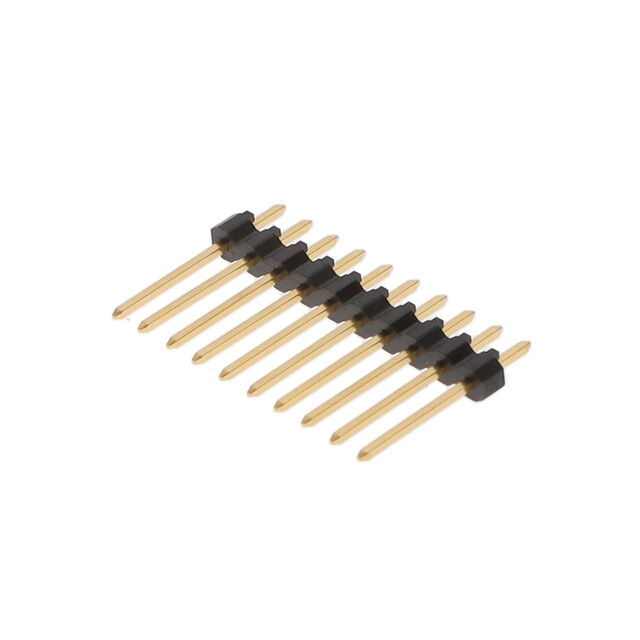

MDF7-10P-2.54DSA(96)

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MDF7-10P-2.54DSA(96)

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDF7-10P-2.54DSA(96)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Length - Mating	10 mm
Contact Length - Mating	0.394 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Overall Contact Length	15.54 mm
Overall Contact Length	0.612 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

MDF7 Series

Board to Board & Mezzanine Connectors

...

Part	Insulation Color	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Connector Type	Contact Length - Post	Contact Length - Post	Shrouding	Insulation Height [custom]	Insulation Height [custom]	Fastening Type	Contact Type	Number of Positions Loaded	Number of Positions	Number of Rows	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Mounting Type	Insulation Material	Voltage Rating	Termination	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Overall Contact Length	Overall Contact Length	Contact Length - Mating
Hirose Electric USA, Inc. MDF7-10P-2.54DS(55)	Black	0.1 in	2.54 mm	3 A	Header	0.13 in	3.3 mm	Unshrouded	0.157 in	4 mm	Push-Pull	Male Pin	All	10	1	Square	1 µm	39.4 µin	7.42 mm	0.292 in	Brass	-35 °C	85 °C	UL94 V-0	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	250 VDC	Solder	Tin
Hirose Electric USA, Inc. MDF7-15S-2.54DSA(56)	Black	0.1 in	2.54 mm	3 A	Receptacle Bottom Entry	0.118 in	3 mm				Push-Pull	Female Socket	All	15	1	Square	0.203 Ám	8 Áin			Phosphor Bronze	-35 °C	85 °C	UL94 V-0	Through Hole	Nylon Polyamide (PA)	250 VAC	Solder	Tin	1 çm	39.4 çin	0.197 in	5 mm	Gold
Hirose Electric USA, Inc. MDF7-34D-2.54DSA(38)	Black	0.1 in	2.54 mm	3 A	Receptacle Bottom Entry	0.118 in	3 mm				Push-Pull	Female Socket		34	2	Square	2 µm	78.7 µin			Phosphor Bronze	-35 °C	85 °C	UL94 V-0	Through Hole	Nylon Polyamide (PA)	250 VAC	Solder				0.197 in	5 mm		26	2.54 mm	0.1 in
Hirose Electric USA, Inc. MDF7-5S-2.54DSA(95)	Black	0.1 in	2.54 mm	3 A	Receptacle Bottom Entry	0.118 in	3 mm				Push-Pull	Female Socket	All		1	Square					Phosphor Bronze	-35 °C	85 °C	UL94 V-0	Through Hole	Nylon Polyamide (PA)	250 VAC	Solder	Tin			0.197 in	5 mm
Hirose Electric USA, Inc. MDF7-14S-2.54DSA(95)	Black	0.1 in	2.54 mm	3 A	Receptacle Bottom Entry	0.118 in	3 mm				Push-Pull	Female Socket	All	14	1	Square					Phosphor Bronze	-35 °C	85 °C	UL94 V-0	Through Hole	Nylon Polyamide (PA)	250 VAC	Solder	Tin			0.197 in	5 mm
Hirose Electric USA, Inc. MDF7-14D-2.54DSA(55)	Black	0.1 in	2.54 mm	3 A	Receptacle Bottom Entry	0.118 in	3 mm				Push-Pull	Female Socket	All	14	2	Square	2 µm	78.7 µin			Phosphor Bronze	-35 °C	85 °C	UL94 V-0	Through Hole	Nylon Polyamide (PA)	250 VAC	Solder	Tin	2 çm	78.7 çin	0.197 in	5 mm			2.54 mm	0.1 in
Hirose Electric USA, Inc. MDF7-23P-2.54DS(95)	Black	0.1 in	2.54 mm	3 A	Header	0.13 in	3.3 mm	Unshrouded	0.157 in	4 mm	Push-Pull	Male Pin	All	23	1	Square			7.45 mm	0.293 in	Brass	-35 °C	85 °C	UL94 V-0	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	250 VAC	Solder	Tin									Board to Cable/Wire
Hirose Electric USA, Inc. MDF7-25P-2.54DSA(55)	Black	0.1 in	2.54 mm	3 A	Header	0.118 in	3 mm	Unshrouded			Push-Pull	Male Pin	All		1	Square	1 µm	39.4 µin	0.394 in		Brass	-35 °C	85 °C	UL94 V-0	Through Hole	Polybutylene Terephthalate (PBT)	250 VDC	Solder	Tin			0.1 in	2.54 mm						15.54 mm	0.612 in	10 mm
Hirose Electric USA, Inc. MDF7-10P-2.54DSA(96)	Black	0.1 in	2.54 mm	3 A	Header	0.118 in	3 mm	Unshrouded			Push-Pull	Male Pin	All	10	1	Square			0.394 in		Brass	-35 °C	85 °C	UL94 V-0	Through Hole	Polybutylene Terephthalate (PBT)	250 VAC	Solder				0.1 in	2.54 mm	Gold				Board to Cable/Wire	15.54 mm	0.612 in	10 mm
Hirose Electric USA, Inc. MDF7-15P-2.54DS(96)	Black	0.1 in	2.54 mm	3 A	Header	0.13 in	3.3 mm	Unshrouded	0.157 in	4 mm	Push-Pull	Male Pin	All	15	1	Square			7.45 mm	0.293 in	Brass	-35 °C	85 °C	UL94 V-0	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	250 VAC	Solder						Gold				Board to Cable/Wire

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 2.48
		10	$ 1.89
		25	$ 1.70
		50	$ 1.57
		100	$ 1.46
		250	$ 1.32
		500	$ 1.23
		1000	$ 1.14
		2500	$ 1.04

Description

General part information

MDF7 Series

Board to Board & Mezzanine Connectors

Documents

Technical documentation and resources
