LHB-08-SA2

Active

Adam Tech

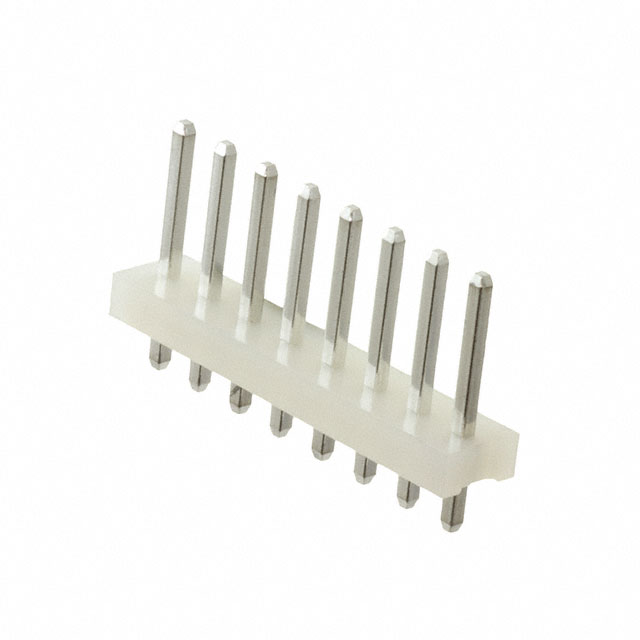

CONN HEADER VERT 8POS 3.96MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 8POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHB-08-SA2

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [x]	0.413 "
Contact Length - Mating [x]	10.5 mm
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Insulation Color	White
Insulation Height	3.2 mm
Insulation Height	0.126 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.689 ", 17.5 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	250 VAC

Part	Current Rating (Amps)	Fastening Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Material	Number of Positions	Material Flammability Rating	Voltage Rating	Termination	Shrouding	Number of Rows	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Contact Type	Overall Contact Length	Mounting Type
Adam Tech LHB-08-SA2	7 A	Push-Pull	All	-25 °C	105 ░C	3.2 mm	0.126 in	White	0.413 "	10.5 mm	Tin	0.156 in	3.96 mm	Header	Polyamide (PA66) Nylon 6/6	8	UL94 V-2	250 VAC	Solder	Unshrouded	1	Square	0.15 in	3.81 mm	Brass	Male Pin	0.689 " 17.5 mm	Through Hole
