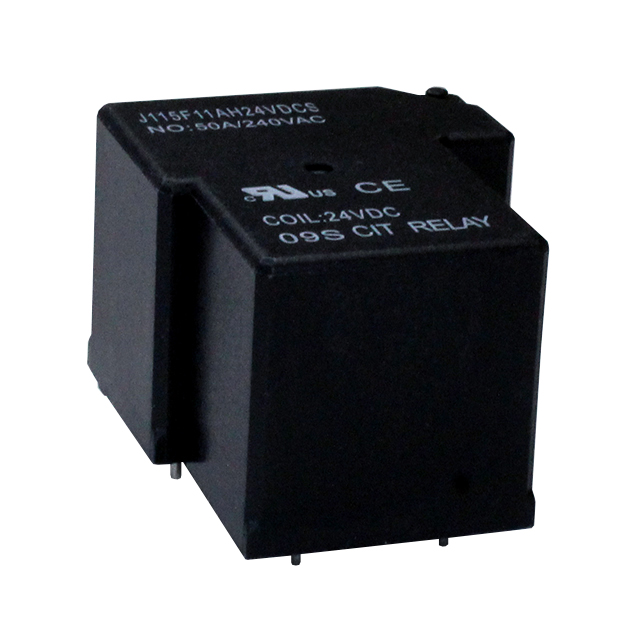

J115F11AH24VDCSH1.5U

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPST 50A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

J115F11AH24VDCSH1.5U

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPST 50A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	J115F11AH24VDCSH1.5U

Coil Current	62.5 mA
Coil Insulation	Class F
Coil Resistance	384 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	50 A
Load - Max Switching	5500 W, 13850 VA
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Must Release Voltage	2.4 VDC
Operate Time	15 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	10 ms
Seal Rating	Sealed - Fully
Switching Voltage	277 VAC, 110 VDC
Termination Style	PC Pin

J115F11 Series

Part	Coil Resistance	Release Time	Coil Voltage	Load - Max Switching	Seal Rating	Must Operate Voltage	Contact Rating (Current)	Coil Current	Operate Time	Contact Material	Relay Type	Mounting Type	Termination Style	Approval Agency	Must Release Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Coil Type	Coil Insulation	Switching Voltage
CIT Relay and Switch J115F11C220VACS6	13.49 kOhms	10 ms	220 VAC/DC	1120 W 9600 VA	Sealed - Fully	165 VAC	40 A	16.3 mA	15 ms	Silver Tin Oxide (AgSnO)	General Purpose	Through Hole	PC Pin	cURus TUV	66 VAC	-55 °C	125 °C	SPDT (1 Form C)	Non Latching	Class F	110 VDC 277 VAC
CIT Relay and Switch J115F11C277VACS6	20.21 kOhms	10 ms	277 VAC	1120 W 9600 VA	Sealed - Fully	207 VAC	40 A	13.7 mA	15 ms	Silver Tin Oxide (AgSnO)	General Purpose	Through Hole	PC Pin	cURus TUV	83.1 VAC	-55 °C	125 °C	SPDT (1 Form C)	Non Latching	Class F	110 VDC 277 VAC
CIT Relay and Switch J115F11AH48VDCSH1.5U	1.536 kOhms	10 ms	48 VDC	5500 W 13850 VA	Sealed - Fully	36 VDC	50 A	31.3 mA	15 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	General Purpose	Through Hole	PC Pin		4.8 VDC	-55 °C	125 °C	SPST-NO (1 Form A)	Non Latching	Class F	110 VDC 277 VAC
CIT Relay and Switch J115F11C12VDCSH.9	160 Ohms	10 ms	12 VDC	1120 W 9600 VA	Sealed - Fully	9 VDC	40 A	75 mA	15 ms	Silver Tin Oxide (AgSnO)	General Purpose	Through Hole	PC Pin	cURus TUV	1.2 VDC	-55 °C	125 °C	SPDT (1 Form C)	Non Latching	Class F	110 VDC 277 VAC
CIT Relay and Switch J115F11C48VDCSH.9	2560 Ohms	10 ms	48 VDC	1120 W 9600 VA	Sealed - Fully	36 VDC	40 A	18.8 mA	15 ms	Silver Tin Oxide (AgSnO)	General Purpose	Through Hole	PC Pin	cURus TUV	4.8 VDC	-55 °C	125 °C	SPDT (1 Form C)	Non Latching	Class F	110 VDC 277 VAC
CIT Relay and Switch J115F11C12VDCS.6	240 Ohms	10 ms	12 VDC	1120 W 9600 VA	Sealed - Fully	9 VDC	40 A	50 mA	15 ms	Silver Tin Oxide (AgSnO)	General Purpose	Through Hole	PC Pin	cURus TUV	1.2 VDC	-55 °C	125 °C	SPDT (1 Form C)	Non Latching	Class F	110 VDC 277 VAC
CIT Relay and Switch J115F11AH24VDCSH1.5U	384 Ohms	10 ms	24 VDC	5500 W 13850 VA	Sealed - Fully	18 VDC	50 A	62.5 mA	15 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	General Purpose	Through Hole	PC Pin		2.4 VDC	-55 °C	125 °C	SPST-NO (1 Form A)	Non Latching	Class F	110 VDC 277 VAC
CIT Relay and Switch J115F11C48VDCS.6	3.84 kOhms	10 ms	48 VDC	1120 W 9600 VA	Sealed - Fully	36 VDC	40 A		15 ms	Silver Tin Oxide (AgSnO)	General Purpose	Through Hole	PC Pin	cURus TUV	4.8 VDC	-55 °C	125 °C	SPDT (1 Form C)	Non Latching	Class F	110 VDC 277 VAC
CIT Relay and Switch J115F11C24VDCS.9	640 Ohms	10 ms	24 VDC	1120 W 9600 VA	Sealed - Fully	18 VDC	40 A	37.5 mA	15 ms	Silver Tin Oxide (AgSnO)	General Purpose	Through Hole	PC Pin	cURus TUV	2.4 VDC	-55 °C	125 °C	SPDT (1 Form C)	Non Latching	Class F	110 VDC 277 VAC
CIT Relay and Switch J115F11A48VDCSH.6	3.84 kOhms	10 ms	48 VDC	1120 W 9600 VA	Sealed - Fully	36 VDC	40 A		15 ms	Silver Tin Oxide (AgSnO)	General Purpose	Through Hole	PC Pin	cURus TUV	4.8 VDC	-55 °C	125 °C	SPST-NO (1 Form A)	Non Latching	Class F	110 VDC 277 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.93
		15	$ 2.75
		30	$ 2.44
		60	$ 2.32
		105	$ 2.20
		255	$ 2.15

Description

General part information

J115F11 Series

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
