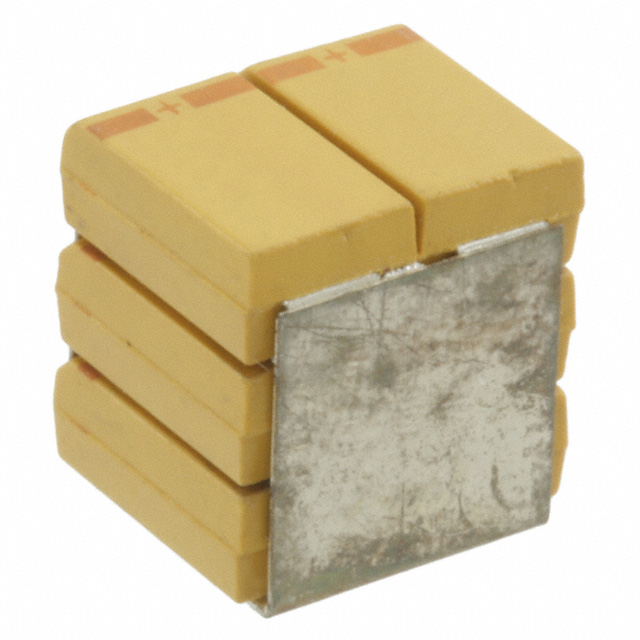

TSM6D138M010AH6410D493

Active

KEMET

CAP TANT 1300UF 20% 10V SMD

Search across all available documentation for this part.

Active

KEMET

CAP TANT 1300UF 20% 10V SMD

Technical Specifications

Parameters and characteristics for this part

Specification	TSM6D138M010AH6410D493

Capacitance	1300 µF
ESR (Equivalent Series Resistance)	83 mOhm
Features	High Reliability
Height - Seated (Max) [Max] [z]	9.58 mm
Height - Seated (Max) [Max] [z]	0.377 in
Manufacturer Size Code	6D
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Stacked SMD, 6 J-Lead
Ratings	COTS
Size / Dimension [x]	0.315 "
Size / Dimension [x]	8 mm
Size / Dimension [y]	8.9 mm
Size / Dimension [y]	0.35 "
Tolerance	20 %
Type	Molded
Voltage - Rated	10 V

Part	Type	Package / Case	Voltage - Rated	Tolerance	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Features	Mounting Type	Capacitance	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET TSM6D138M010AH6410D493	Molded	Stacked SMD 6 J-Lead	10 V	20 %	6D	-55 °C	125 °C	83 mOhm	High Reliability	Surface Mount	1300 µF	COTS	8.9 mm	0.315 "	8 mm	0.35 "	9.58 mm	0.377 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 42.16

General part information

1300 µF Molded Tantalum Capacitors 10 V Stacked SMD, 6 J-Lead 83mOhm
