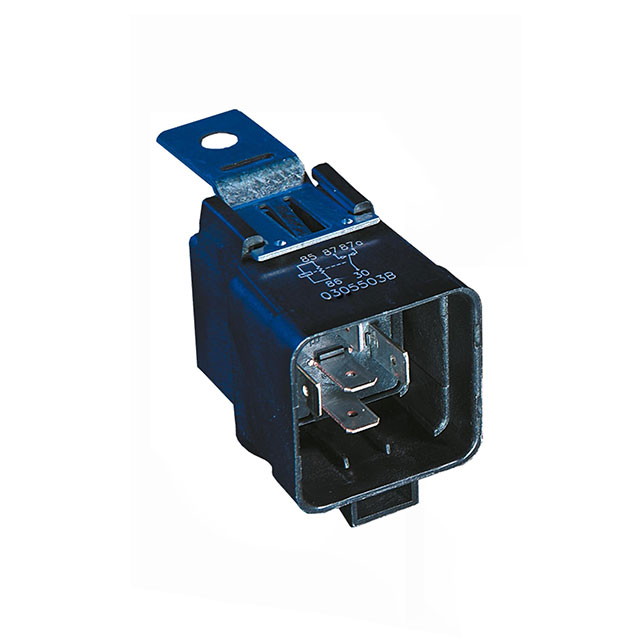

3-1904131-5
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 40A 12V
Deep-Dive with AI
Search across all available documentation for this part.
3-1904131-5
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 40A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-1904131-5 |
|---|---|
| Coil Current | 133 mA |
| Coil Power | 1.6 W |
| Coil Resistance | 90 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 40 A |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 7.2 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 2 ms |
| Switching Voltage | 14 VDC |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.88 | |
| 10 | $ 17.71 | |||
| 25 | $ 16.91 | |||
| 50 | $ 16.33 | |||
| 110 | $ 15.69 | |||
| 330 | $ 14.84 | |||
| 550 | $ 14.47 | |||
Description
General part information
1904131 Series
RELAY GEN PURPOSE SPDT 40A 12V
Documents
Technical documentation and resources
No documents available
