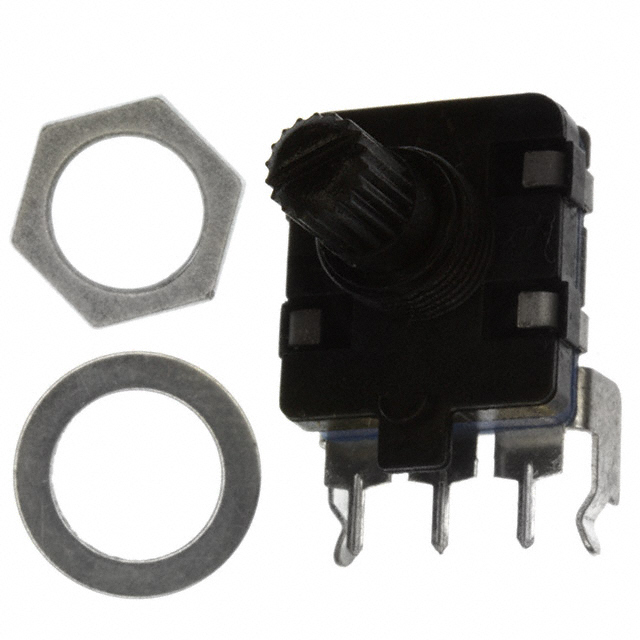

ACZ16NBR1E-15KQA1-12C

Active

CUI Devices

ROTARY ENCODER INCREMENT 12PPR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACZ16NBR1E-15KQA1-12C

Active

CUI Devices

ROTARY ENCODER INCREMENT 12PPR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACZ16NBR1E-15KQA1-12C

Actuator Type	Knurled End
Actuator Type [diameter]	6 mm
Built in Switch	False
Detent	True
Encoder Type	Incremental
Mounting Type	PCB Through Hole, Panel
Orientation	Right Angle
Output Type	Quadrature (Incremental)
Pulses per Revolution	12 pulses per revolution
Rotational Life (Cycles Min) [Min]	100K
Termination Style	PC Pin

ACZ16 Series

Part	Orientation	Mounting Type	Output Type	Actuator Type [diameter]	Actuator Type	Rotational Life (Cycles Min) [Min]	Encoder Type	Pulses per Revolution	Termination Style	For Use With/Related Products	Accessory Type
CUI Devices ACZ16NBR1E-15KQA1-12C	Right Angle	Panel PCB Through Hole	Quadrature (Incremental)	6 mm	Knurled End	100K	Incremental	12 pulses per revolution	PC Pin
CUI Devices ACZ16NBR1E-20KQA1-24C	Right Angle	Panel PCB Through Hole	Quadrature (Incremental)	6 mm	Knurled End	100K	Incremental	24 per Revolution	PC Pin
CUI Devices ACZ16NBR1E-20KQA1-12C	Right Angle	Panel PCB Through Hole	Quadrature (Incremental)	6 mm	Knurled End	100K	Incremental	12 pulses per revolution	PC Pin
CUI Devices ACZ16 WASHER										ACZ 16 Encoder	Washer
CUI Devices ACZ16BR1E-20FA1-12C	Right Angle	Panel PCB Through Hole	Quadrature (Incremental)	6 mm	Flatted End	100K	Incremental	12 pulses per revolution	PC Pin
CUI Devices ACZ16BR1E-15KQD1-24C	Vertical	Panel PCB Through Hole	Quadrature (Incremental)	6 mm	Flatted End	100K	Incremental	24 per Revolution	PC Pin
CUI Devices ACZ16BR1E-15FD1-24C	Vertical	Panel PCB Through Hole	Quadrature (Incremental)	6 mm	Flatted End	100K	Incremental	24 per Revolution	PC Pin
CUI Devices ACZ16NBR1E-15KQD1-24C	Vertical	Panel PCB Through Hole	Quadrature (Incremental)	6 mm	Knurled End	100K	Incremental	24 per Revolution	PC Pin
CUI Devices ACZ16NBR1E-15FD1-24C	Vertical	Panel PCB Through Hole	Quadrature (Incremental)	6 mm	Flatted End	100K	Incremental	24 per Revolution	PC Pin
CUI Devices ACZ16NBR1E-20FA1-24C	Right Angle	Panel PCB Through Hole	Quadrature (Incremental)	6 mm	Flatted End	100K	Incremental	24 per Revolution	PC Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1020	$ 1.24

Description

General part information

ACZ16 Series

Rotary Encoder Incremental 12 Quadrature (Incremental) Right Angle
