GLF2321B-T1G7

Active

GLF Integrated Power

1.8A CURRENT LIMIT POWER SWITCH

Search across all available documentation for this part.

Active

GLF Integrated Power

1.8A CURRENT LIMIT POWER SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	GLF2321B-T1G7

Current - Output (Max) [Max]	1.8 A
Fault Protection	UVLO, Over Temperature, Current Limiting (Fixed), Short Circuit, Reverse Current
Features	Slew Rate Controlled, Load Discharge
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1

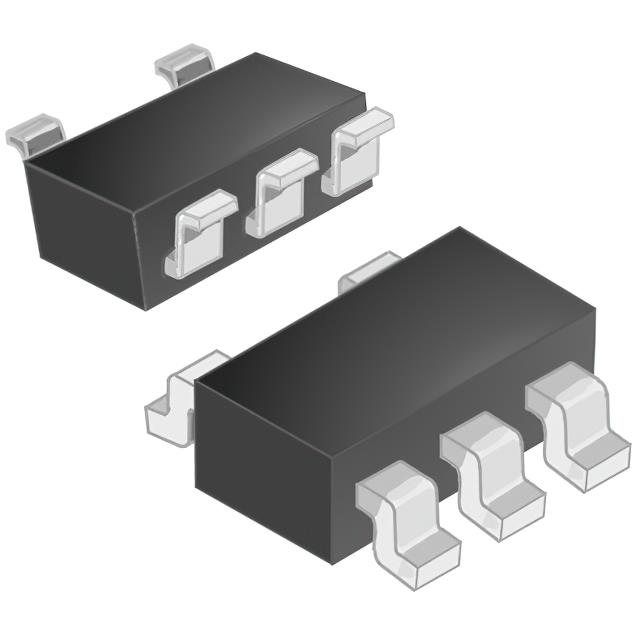

Package / Case	SC-74A, SOT-753
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	56 mOhm
Supplier Device Package	SOT-23-5
Switch Type	General Purpose
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	2.5 V
Voltage - Supply (Vcc/Vdd)	False

Part	Mounting Type	Supplier Device Package	Current - Output (Max) [Max]	Fault Protection	Interface	Ratio - Input:Output [custom]	Features	Voltage - Supply (Vcc/Vdd)	Package / Case	Rds On (Typ)	Switch Type	Number of Outputs	Voltage - Load [Min]	Voltage - Load [Max]
GLF Integrated Power GLF2321B-T1G7	Surface Mount	SOT-23-5	1.8 A	Current Limiting (Fixed) Over Temperature Reverse Current Short Circuit UVLO	On/Off	1:1	Load Discharge Slew Rate Controlled		SC-74A SOT-753	56 mOhm	General Purpose	1	2.5 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Switch/Driver 1:1 1.8A SOT-23-5

Technical documentation and resources

No documents available
