TCR4DG28,LF

Active

Toshiba Semiconductor and Storage

IC REG LINEAR 2.8V 420MA 4WCSPE

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

IC REG LINEAR 2.8V 420MA 4WCSPE

Technical Specifications

Parameters and characteristics for this part

Specification	TCR4DG28,LF

Control Features	Enable
Current - Output	420 mA
Current - Quiescent (Iq)	68 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm

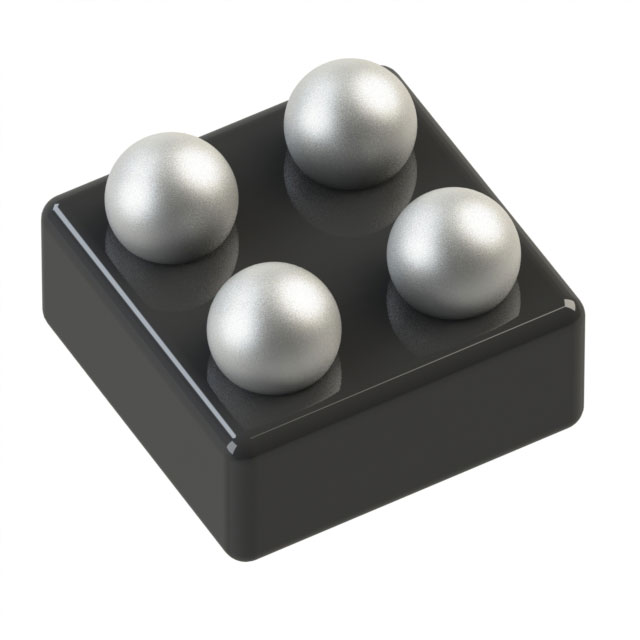

Package / Case	CSPBGA, 4-XFBGA
Protection Features	Over Temperature, Over Current, Short Circuit
PSRR	70 dB
Supplier Device Package	4-WCSPE
Supplier Device Package [x]	0.65
Supplier Device Package [y]	0.65
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	2.8 V
Voltage Dropout (Max) [Max]	0.22 V

Part	Control Features	Current - Output	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Input (Max) [Max]	PSRR	Voltage Dropout (Max) [Max]	Mounting Type	Number of Regulators	Protection Features	Output Configuration
Toshiba Semiconductor and Storage TCR4DG28,LF	Enable	420 mA	2.8 V	68 µA	4-WCSPE	0.65	0.65	4-XFBGA CSPBGA	85 °C	-40 °C	1.81 mOhm	5.5 V	70 dB	0.22 V	Surface Mount	1	Over Current Over Temperature Short Circuit	Positive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 420mA 4-WCSPE (0.65x0.65)
