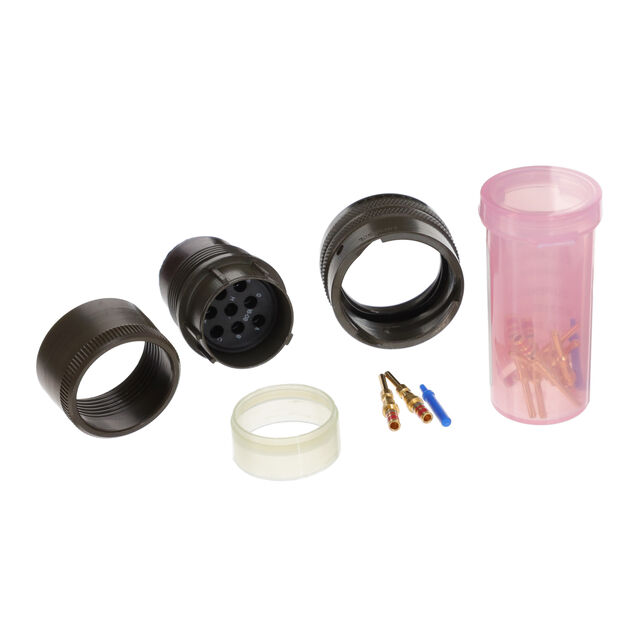

MS3126E16-8P

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB PLUG

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	MS3126E16-8P

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Aluminum, Olive Drab Chromate over Cadmium
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shielding	Unshielded
Termination	Crimp
Voltage Rating	1000 VAC

Part	Connector Type	Voltage Rating	Color	Number of Positions	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Orientation	Fastening Type	Ingress Protection	Shell Finish	Applications	Backshell Material, Plating	Qualification	Contact Finish - Mating	Contact Material	Shell Material	Mounting Type	Features	Current Rating (Amps)	Shielding	Insert Material	Termination	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Industrial Operations MS3126E16-23S(LC)
Amphenol Industrial Operations MS3126E16-8P	Male Pins Plug	1000 VAC	Olive Drab	8	Metal	-55 °C	125 °C	Military	N	Bayonet Lock	Environment Resistant	Olive Drab Chromate over Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	Gold	Copper Alloy	Aluminum	Free Hanging (In-Line)	Backshell Coupling Nut	13 A	Unshielded	Neoprene	Crimp
Amphenol Industrial Operations MS3126E16-26P(LC)
Amphenol Industrial Operations MS3126E16-23S	Female Sockets Plug	600 VAC	Olive Drab	23	Metal	-55 °C	125 °C	Military	N	Bayonet Lock	Environment Resistant	Olive Drab Chromate over Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	Gold	Copper Alloy	Aluminum	Free Hanging (In-Line)	Backshell Coupling Nut	7.5 A 13 A	Unshielded	Neoprene	Crimp	16	23
Amphenol Industrial Operations MS3126E16-99P(LC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Male Pins Crimp
