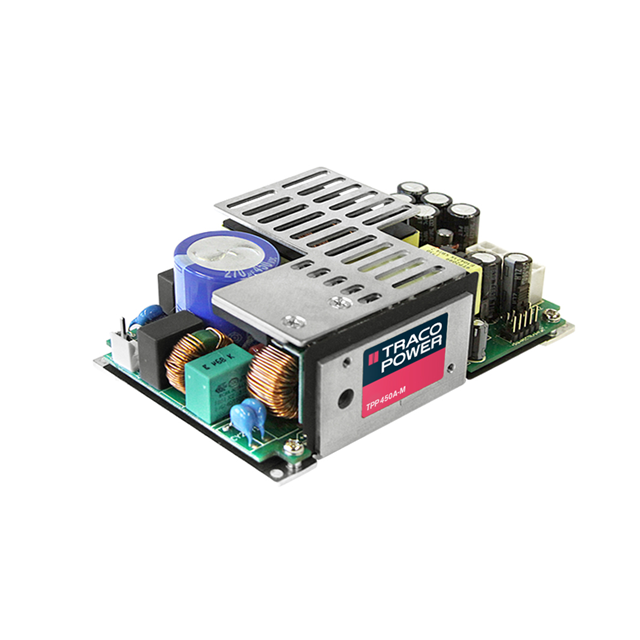

TPP 450-148A-M

Active

Traco Power

AC/DC CONVERTER 48V 319W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TPP 450-148A-M

Active

Traco Power

AC/DC CONVERTER 48V 319W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TPP 450-148A-M

Applications	ITE (Commercial), Medical
Approval Agency	CB, cURus, CE
Current - Output 1	6.65 A
Efficiency	94 %
Features	Adjustable Output, PFC, DC Input Capable, Universal Input, Standby Output, Remote On/Off
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	319 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.58 "
Size / Dimension [z]	40.1 mm
Standard Number	60601-1, 62368-1
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

TPP 450BA-M Series

Modular Power Supplies cable for aux output 2x4 pin for TPP450

Part	Features	Current - Output 1	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Applications	Standard Number	Type	Voltage - Isolation	Voltage - Output 1	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)
Traco Power TPP 450-112B-M	Adjustable Output PFC Remote On/Off Standby Output Universal Input	37.5 A	Chassis Mount	-40 °C	80 ¯C	1	CB CE cURus	85 VAC 120 VDC	264 VAC 370 VDC	91 %	ITE (Commercial) Medical	60601-1 62368-1	Enclosed	4000 V	12 V	450 W	5.83 in	148.1 mm	1.6 in	80 mm	3.15 in	40.6 mm
Traco Power TPP 450-112BA-M	Adjustable Output PFC Remote On/Off Standby Output Universal Input	20.8 A	Chassis Mount	-40 °C	85 °C	1	CB CE cURus	85 VAC 120 VDC	264 VAC 370 VDC	91 %	ITE (Commercial) Medical	60601-1 62368-1	Open Frame	4000 V	12 V	250 W 450 W	127 mm		40.1 mm		76.2 mm		3 "	1.58 "	5 in
Traco Power TPP 450-148A-M	Adjustable Output DC Input Capable PFC Remote On/Off Standby Output Universal Input	6.65 A	Chassis Mount	-40 °C	85 °C	1	CB CE cURus	85 VAC 120 VDC	264 VAC 370 VDC	94 %	ITE (Commercial) Medical	60601-1 62368-1	Open Frame	4000 V	48 V	319 W	127 mm		40.1 mm		76.2 mm		3 "	1.58 "	5 in
Traco Power TPP 450-148BA-M	Adjustable Output PFC Remote On/Off Standby Output Universal Input	6.65 A	Chassis Mount	-40 °C	85 °C	1	CB CE cURus	85 VAC 120 VDC	264 VAC 370 VDC	94 %	ITE (Commercial) Medical	60601-1 62368-1	Open Frame	4000 V	48 V	319 W	127 mm		40.1 mm		76.2 mm		3 "	1.58 "	5 in	451 W
Traco Power TPP 450-115BA-M	Adjustable Output PFC Remote On/Off Standby Output Universal Input	16.6 A	Chassis Mount	-40 °C	85 °C	1	CB CE cURus	85 VAC 120 VDC	264 VAC 370 VDC	92 %	ITE (Commercial) Medical	60601-1 62368-1	Open Frame	4000 V	15 V	249 W 450 W	127 mm		40.1 mm		76.2 mm		3 "	1.58 "	5 in
Traco Power TPP 450-124BA-M	Adjustable Output PFC Remote On/Off Standby Output Universal Input	13.3 A	Chassis Mount	-40 °C	85 °C	1	CB CE cURus	85 VAC 120 VDC	264 VAC 370 VDC	93 %	ITE (Commercial) Medical	60601-1 62368-1	Open Frame	4000 V	24 V	319 W	127 mm		40.1 mm		76.2 mm		3 "	1.58 "	5 in
Traco Power TPP 450-136BA-M	Adjustable Output PFC Remote On/Off Standby Output Universal Input	8.9 A	Chassis Mount	-40 °C	85 °C	1	CB CE cURus	85 VAC 120 VDC	264 VAC 370 VDC	93 %	ITE (Commercial) Medical	60601-1 62368-1	Open Frame	4000 V	36 V	320 W	127 mm		40.1 mm		76.2 mm		3 "	1.58 "	5 in	450 W
Traco Power TPP 450-148B-M	Adjustable Output PFC Remote On/Off Standby Output Universal Input	9.4 A	Chassis Mount	-40 °C	80 ¯C	1	CB CE cURus	85 VAC 120 VDC	264 VAC 370 VDC	94 %	ITE (Commercial) Medical	60601-1 62368-1	Enclosed	4000 V	48 V	451 W	5.83 in	148.1 mm	1.6 in	80 mm	3.15 in	40.6 mm
Traco Power TPP 450-136B-M	Adjustable Output PFC Remote On/Off Standby Output Universal Input	12.5 A	Chassis Mount	-40 °C	80 ¯C	1	CB CE cURus	85 VAC 120 VDC	264 VAC 370 VDC	93 %	ITE (Commercial) Medical	60601-1 62368-1	Enclosed	4000 V	36 V	450 W	5.83 in	148.1 mm	1.6 in	80 mm	3.15 in	40.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 213.90
		10	$ 161.97

Description

General part information

TPP 450BA-M Series

Modular Power Supplies cable for aux output 2x4 pin for TPP450
