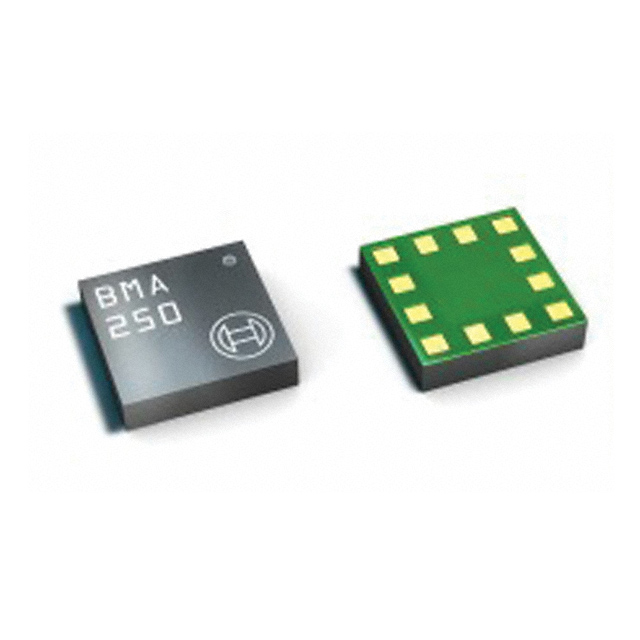

BMA250

Obsolete

Bosch Sensortec

ACCEL 2-16G I2C/SPI 12LGA

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

ACCEL 2-16G I2C/SPI 12LGA

Technical Specifications

Parameters and characteristics for this part

Specification	BMA250

Acceleration Range	4 g, 16 g, 8 g
Acceleration Range [Max]	2 g
Acceleration Range [Min]	-2 g
Axis [x]	X
Axis [y]	Y
Axis [z]	Z
Bandwidth [Max]	1 kHz
Bandwidth [Min]	8 Hz
Features	Selectable Scale, Adjustable Bandwidth, Selectable Low Pass Filter
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	I2C, SPI
Package / Case	12-VFLGA
Sensitivity (LSB/g)	256 LSB/g, 16 LSB/g
Supplier Device Package	12-LGA (2x2)
Type	Digital
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.62 V

Part	Utilized IC / Part	Function	Contents	Type	Axis [z]	Axis [y]	Axis [x]	Features	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Sensitivity (LSB/g)	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Bandwidth [Min]	Bandwidth [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Supplier Device Package
Bosch Sensortec BMA250E-SHUTL	BMA250E	Accelerometer	Board(s)	Sensor
Bosch Sensortec BMA250				Digital	Z	Y	X	Adjustable Bandwidth Selectable Low Pass Filter Selectable Scale	4 g 8 g 16 g	-2 g	2 g	16 LSB/g 256 LSB/g	I2C SPI	3.6 V	1.62 V	8 Hz	1 kHz	85 °C	-40 °C	Surface Mount	12-VFLGA	12-LGA (2x2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 8Hz ~ 1kHz 12-LGA (2x2)
