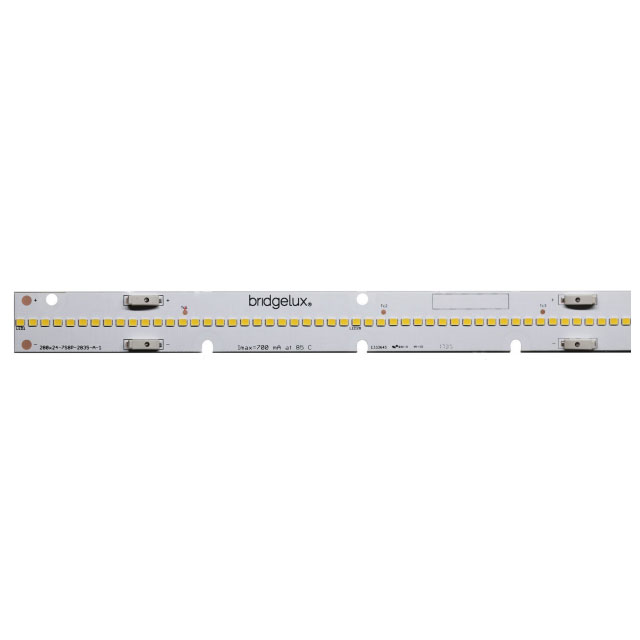

BXEB-L1120Z-35E8000-C-D3

Active

BRIDGELUX

LED MOD EB SER WH LNR STRP 3500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXEB-L1120Z-35E8000-C-D3

Active

BRIDGELUX

LED MOD EB SER WH LNR STRP 3500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXEB-L1120Z-35E8000-C-D3

CCT (K)	3500 K
Color	White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Max [Max]	2.8 A
Height [z]	6.1 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	185 lm/W
Luminous Flux @ Current/Temperature	9920 lm
Size / Dimension [x]	1120 mm
Size / Dimension [y]	24 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	38.4 V

BXEB-L1120 Series

Part	Lens Type	Color	Luminous Flux @ Current/Temperature	Height [z]	Type	Configuration	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Temperature - Test	Lumens/Watt @ Current - Test	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Viewing Angle	Features	Current - Test
BRIDGELUX BXEB-L1120Z-35E4000-C-A3	Flat	Warm White	4820 lm	6.1 mm	LED Module	Linear Light Strip	80	44.2 V	50 °C	156 lm/W	1.4 A	1120 mm	24 mm	3500 K
BRIDGELUX BXEB-L1120Z-35E8000-C-D3	Flat	Warm White	9920 lm	6.1 mm	LED Module	Linear Light Strip	80	38.4 V		185 lm/W	2.8 A	1120 mm	24 mm	3500 K	120 °
BRIDGELUX BXEB-L1120Z-57E4000-C-A3	Flat	Cool White	4920 lm	6.1 mm	LED Module	Linear Light Strip	80	44.2 V	50 °C	159 lm/W	1.4 A	1120 mm	24 mm	5700 K
BRIDGELUX BXEB-L1120Z-40E4000-C-B3	Flat	Neutral White	4920 lm	6.1 mm	LED Module	Linear Light Strip	80	39 V		180 lm/W	1.4 A	1120 mm	24 mm	4000 K	120 °	With Connector
BRIDGELUX BXEB-L1120Z-40E4000-C-A3	Flat	Neutral White	4920 lm	6.1 mm	LED Module	Linear Light Strip	80	44.2 V	50 °C	159 lm/W	1.4 A	1120 mm	24 mm	4000 K
BRIDGELUX BXEB-L1120Z-50E4000-C-B3	Flat	Cool White	4920 lm	6.1 mm	LED Module	Linear Light Strip	80	39 V		180 lm/W	1.4 A	1120 mm	24 mm		120 °
BRIDGELUX BXEB-L1120Z-35E4000-C-B3	Flat	Warm White	4780 lm	6.1 mm	LED Module	Linear Light Strip	80	39 V		175 lm/W	1.4 A	1120 mm	24 mm	3500 K	120 °
BRIDGELUX BXEB-L1120Z-50E4000-C-A3	Flat	Cool White	4920 lm	6.1 mm	LED Module	Linear Light Strip	80	44.2 V	50 °C	159 lm/W	1.4 A	1120 mm	24 mm
BRIDGELUX BXEB-L1120Z-50S4000-C-C3	Flat	Cool White	5380 lm	6.1 mm	LED Module	Linear Light Strip	98	40.6 V		138 lm/W	1.92 A	1120 mm	24 mm		120 °		960 mA
BRIDGELUX BXEB-L1120Z-57E4000-C-B3	Flat	Cool White	4920 lm	6.1 mm	LED Module	Linear Light Strip	80	39 V		180 lm/W	1.4 A	1120 mm	24 mm	5700 K	120 °	With Connector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.02
		10	$ 9.13

Description

General part information

BXEB-L1120 Series

LED Lighting COBs Engines Modules LED Module EB Series™ Gen 3 White, Warm Linear Light Strip
