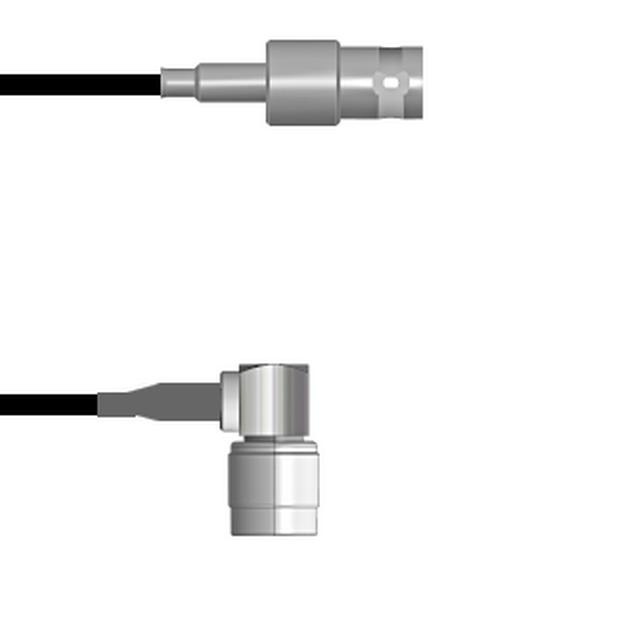

Q-0304T0003001M

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JACK-PLUG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0304T0003001M

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JACK-PLUG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0304T0003001M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0304T0 Series

Part	Color	Style	2nd Contact Gender	1st Connector	Overall Impedance	2nd Connector	Frequency - Max [Max]	Cable Type	Features	Length	Length	1st Connector Mounting Type	2nd Connector Mounting Type	1st Contact Gender	Length
Amphenol Custom Cable Q-0304T0005.75M	Copper	BNC to TNC	Male	BNC Jack	50 Ohms	TNC Plug Right Angle	4 GHz	RG-316	Shielded	29.53 "	750 mm	Free Hanging (In-Line)	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-0304T0003084i	Black	BNC to TNC	Male	BNC Jack	50 Ohms	TNC Plug Right Angle	4 GHz	RG-174	Shielded	84 in	2.1 m	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	7 ft
Amphenol Custom Cable Q-0304T0005001M	Copper	BNC to TNC	Male	BNC Jack	50 Ohms	TNC Plug Right Angle	4 GHz	RG-316	Shielded	39.4 in	1 m	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	3.3 ft
Amphenol Custom Cable Q-0304T0003001M	Black	BNC to TNC	Male	BNC Jack	50 Ohms	TNC Plug Right Angle	4 GHz	RG-174	Shielded	39.4 in	1 m	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	3.3 ft
Amphenol Custom Cable Q-0304T0005060i	Copper	BNC to TNC	Male	BNC Jack	50 Ohms	TNC Plug Right Angle	4 GHz	RG-316	Shielded	5 '	1.5 m	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	5 ft
Amphenol Custom Cable Q-0304T0005072i	Copper	BNC to TNC	Male	BNC Jack	50 Ohms	TNC Plug Right Angle	4 GHz	RG-316	Shielded	72 in	1.8 m	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	6 ft
Amphenol Custom Cable Q-0304T0003036i	Black	BNC to TNC	Male	BNC Jack	50 Ohms	TNC Plug Right Angle	4 GHz	RG-174	Shielded	36 in	91.44 cm	Free Hanging (In-Line)	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-0304T0003003i	Black	BNC to TNC	Male	BNC Jack	50 Ohms	TNC Plug Right Angle	4 GHz	RG-174	Shielded	3 in	76.2 mm	Free Hanging (In-Line)	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-0304T0005108i	Copper	BNC to TNC	Male	BNC Jack	50 Ohms	TNC Plug Right Angle	4 GHz	RG-316	Shielded	108 in	2.7 m	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	9 ft
Amphenol Custom Cable Q-0304T0005009i	Copper	BNC to TNC	Male	BNC Jack	50 Ohms	TNC Plug Right Angle	4 GHz	RG-316	Shielded	9 "	228.6 mm	Free Hanging (In-Line)	Free Hanging (In-Line)	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 54.58
		25	$ 53.52
		50	$ 52.46
		100	$ 51.39
		250	$ 50.33

Description

General part information

Q-0304T0 Series

Cable Assembly Coaxial BNC to TNC RG-174 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
