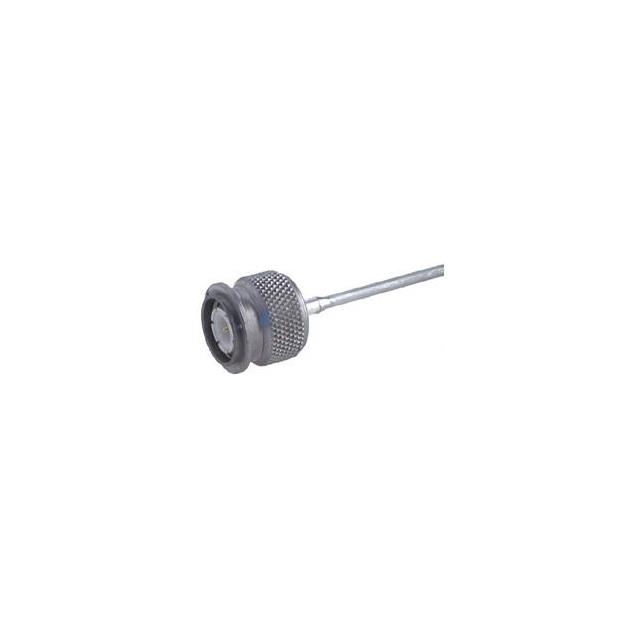

11_TNC-50-3-29/103_NE

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11_TNC-50-3-29/103_NE

Active

Huber+Suhner, Inc.

11_TNC-50-3-29/103_NE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11_TNC-50-3-29/103_NE

Body Finish	Silver
Body Material	Brass
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Brass
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

11_TNC-50 Series

Part	Voltage Rating	Center Contact Material	Dielectric Material	Connector Style	Mating Cycles	Shield Termination	Housing Color	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Contact Termination	Mounting Type	Center Contact Plating	Connector Type	Impedance	Frequency - Max [Max]	Body Finish	Number of Ports	Contact Material	Contact Finish	Cable Group
Huber+Suhner, Inc. 11_TNC-50-7-10/133_NE	500 V	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	TNC	500	Crimp	Silver	RG-214	-65 ░C	165 °C	Brass	Crimp	Free Hanging (In-Line)	Gold	Male Pin Plug	50 Ohms	11 GHz	White Bronze	1
Huber+Suhner, Inc. 11_TNC-50-3-5/133_NE	500 V	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	TNC	500	Clamp	Silver	223 400 RG-142	-65 ░C	165 °C	Brass	Solder	Free Hanging (In-Line)	Gold	Male Pin Plug	50 Ohms	11 GHz	White Bronze	1
Huber+Suhner, Inc. 11_TNC-50-3-29/103_NE			Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	TNC							Brass		Cap Free Hanging		Male Pin Plug	50 Ohms	11 GHz	Silver		Brass	Gold
Huber+Suhner, Inc. 11_TNC-50-1-6/133_NE	500 V	Brass Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	TNC	500	Crimp	Silver	RG-178	-65 ░C	165 °C	Brass	Crimp	Free Hanging (In-Line)	Gold	Male Pin Plug	50 Ohms	11 GHz	White Bronze	1			196
Huber+Suhner, Inc. 11_TNC-50-2-20/103_NE	500 V	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	TNC	500	Solder	Silver	RG-405	-65 ░C	165 °C	Brass	Solder	Free Hanging (In-Line)	Gold	Male Pin Plug	50 Ohms	11 GHz	Silver	1
Huber+Suhner, Inc. 11_TNC-50-7-5/133_UE	500 V	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	TNC	500	Crimp	Silver	RG-213	-65 ░C	165 °C	Brass	Crimp	Free Hanging (In-Line)	Gold	Male Pin Plug	50 Ohms	11 GHz	White Bronze	1
Huber+Suhner, Inc. 11_TNC-50-3-116/133_UH	500 V	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	TNC	500	Crimp	Silver	RG-58	-65 ░C	165 °C	Brass	Crimp	Free Hanging (In-Line)	Gold	Male Pin Plug	50 Ohms	11 GHz	White Bronze	1
Huber+Suhner, Inc. 11_TNC-50-3-116/133_NE	500 V	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	TNC	500	Crimp	Silver	RG-58	-65 ░C	165 °C	Brass	Crimp	Free Hanging (In-Line)	Gold	Male Pin Plug	50 Ohms	11 GHz	White Bronze	1
Huber+Suhner, Inc. 11_TNC-50-6-3/133_NE	500 V	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	TNC	500	Crimp	Silver		-65 ░C	165 °C	Brass	Crimp	Free Hanging (In-Line)	Gold	Male Pin Plug	50 Ohms	11 GHz	White Bronze	1
Huber+Suhner, Inc. 11_TNC-50-7-19/133_NE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.52
		10	$ 34.45
		25	$ 31.25
		50	$ 29.09
		100	$ 27.14
		250	$ 24.84

Description

General part information

11_TNC-50 Series

Terminator Coax Connector Plug, Male Pin TNC 50 Ohms
