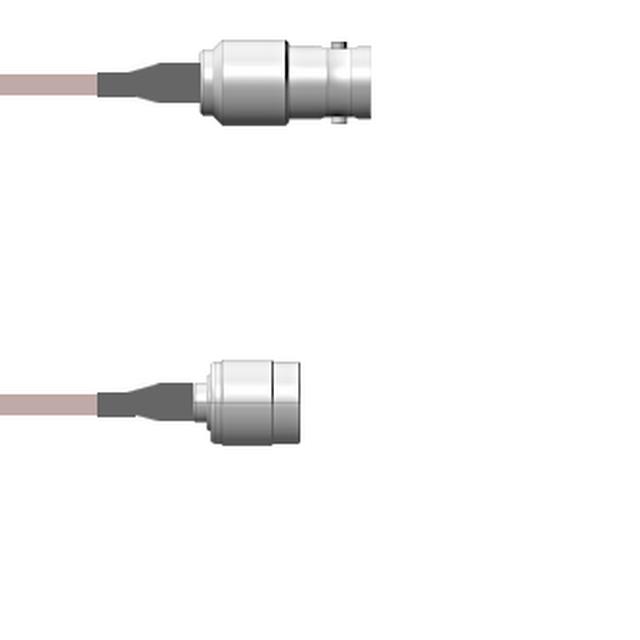

Q-020510001003M

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JACK-PLUG 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-020510001003M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-020510 Series

Part	Features	2nd Contact Gender	1st Connector	Length	Length	Frequency - Max [Max]	Color	Cable Type	2nd Connector Mounting Type	Overall Impedance	1st Contact Gender	2nd Connector	1st Connector Mounting Type	Style	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-020510001036i	Shielded	Male	BNC Jack	91.44 cm	36 in	4 GHz	Copper	RG-178	Free Hanging (In-Line)	50 Ohms	Female	TNC Plug	Free Hanging (In-Line)	BNC to TNC
Amphenol Custom Cable Q-020510001108i	Shielded	Male	BNC Jack	2.7 m	108 in	4 GHz	Copper	RG-178	Free Hanging (In-Line)	50 Ohms	Female	TNC Plug	Free Hanging (In-Line)	BNC to TNC	9 ft
Amphenol Custom Cable Q-020510001001M	Shielded	Male	BNC Jack	1 m	39.4 in	4 GHz	Copper	RG-178	Free Hanging (In-Line)	50 Ohms	Female	TNC Plug	Free Hanging (In-Line)	BNC to TNC	3.3 ft
Amphenol Custom Cable Q-020510001003M	Shielded	Male	BNC Jack	3 m	118.1 in	4 GHz	Copper	RG-178	Free Hanging (In-Line)	50 Ohms	Female	TNC Plug	Free Hanging (In-Line)	BNC to TNC	9.8 '
Amphenol Custom Cable Q-0205100011.5M	Shielded	Male	BNC Jack	1.5 m	59.1 in	4 GHz	Copper	RG-178	Free Hanging (In-Line)	50 Ohms	Female	TNC Plug	Free Hanging (In-Line)	BNC to TNC	4.9 ft
Amphenol Custom Cable Q-020510001006i	Shielded	Male	BNC Jack	152.4 mm	6 in	4 GHz	Copper	RG-178	Free Hanging (In-Line)	50 Ohms	Female	TNC Plug	Free Hanging (In-Line)	BNC to TNC
Amphenol Custom Cable Q-0205100012.5M	Shielded	Male	BNC Jack	2.5 m	98.4 in	4 GHz	Copper	RG-178	Free Hanging (In-Line)	50 Ohms	Female	TNC Plug	Free Hanging (In-Line)	BNC to TNC	8.2 '
Amphenol Custom Cable Q-020510001009i	Shielded	Male	BNC Jack	228.6 mm	9 "	4 GHz	Copper	RG-178	Free Hanging (In-Line)	50 Ohms	Female	TNC Plug	Free Hanging (In-Line)	BNC to TNC
Amphenol Custom Cable Q-020510001018i	Shielded	Male	BNC Jack			4 GHz	Copper	RG-178	Free Hanging (In-Line)	50 Ohms	Female	TNC Plug	Free Hanging (In-Line)	BNC to TNC		457.2 mm	457.2 mm
Amphenol Custom Cable Q-020510001024i	Shielded	Male	BNC Jack	609.6 mm	24 "	4 GHz	Copper	RG-178	Free Hanging (In-Line)	50 Ohms	Female	TNC Plug	Free Hanging (In-Line)	BNC to TNC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 62.25
		25	$ 57.97
		50	$ 53.69
		100	$ 50.02
		250	$ 46.97

Description

General part information

Q-020510 Series

Cable Assembly Coaxial BNC to TNC RG-178 118.1" (3.0m) 9.8'
