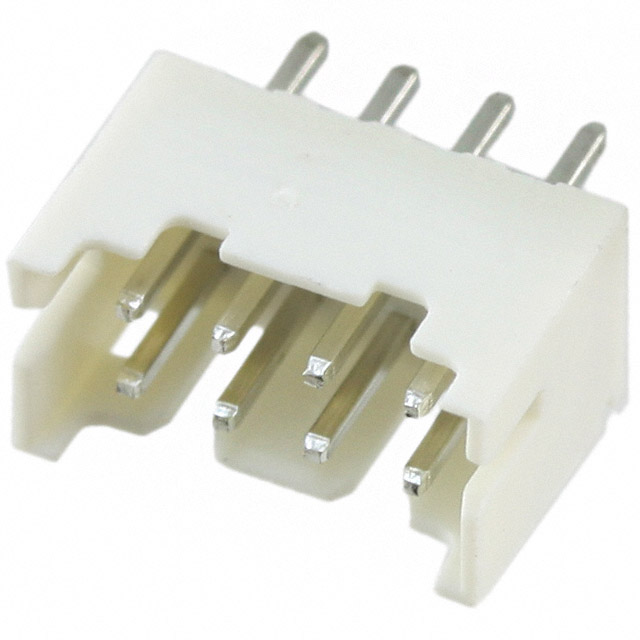

SWR204-NRTN-D04-ST-GA

Active

Sullins Connector Solutions

CONN HEADER VERT 8POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

SWR204-NRTN-D04-ST-GA

Active

Sullins Connector Solutions

CONN HEADER VERT 8POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SWR204-NRTN-D04-ST-GA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Gray
Insulation Height	6.5 mm
Insulation Height	0.256 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

SWR204 Series

Part	Insulation Material	Contact Length - Post	Contact Length - Post	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Termination	Number of Positions Loaded	Contact Type	Insulation Height	Insulation Height	Contact Shape	Current Rating (Amps)	Number of Positions	Contact Finish - Post	Mounting Type	Contact Material	Voltage Rating	Material Flammability Rating	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Shrouding	Fastening Type	Number of Rows
Sullins Connector Solutions SWR204-NRTN-D02-ST-GA	Polyamide (PA66) Nylon 6/6	0.118 in	3 mm	0.079 in	2 mm	Header	Solder	All	Male Pin	6.5 mm	0.256 in	Square	3 A	4	Tin	Through Hole	Brass	50 V	UL94 V-0	Gray	0.079 in	2 mm	-25 °C	85 °C	Board to Cable/Wire	Shrouded - 4 Wall	Detent Lock	2
Sullins Connector Solutions SWR204-NRTN-D04-ST-GA	Polyamide (PA66) Nylon 6/6	0.118 in	3 mm	0.079 in	2 mm	Header	Solder	All	Male Pin	6.5 mm	0.256 in	Square	3 A	8	Tin	Through Hole	Brass	50 V	UL94 V-0	Gray	0.079 in	2 mm	-25 °C	85 °C	Board to Cable/Wire	Shrouded - 4 Wall	Detent Lock	2
Sullins Connector Solutions SWR204-NRTN-D03-ST-GA	Polyamide (PA66) Nylon 6/6	0.118 in	3 mm	0.079 in	2 mm	Header	Solder	All	Male Pin	6.5 mm	0.256 in	Square	3 A	6	Tin	Through Hole	Brass	50 V	UL94 V-0	Gray	0.079 in	2 mm	-25 °C	85 °C	Board to Cable/Wire	Shrouded - 4 Wall	Detent Lock	2
Sullins Connector Solutions SWR204-NRTN-D15-RA-GA	Polyamide (PA66) Nylon 6/6	0.118 in	3 mm	0.079 in	2 mm	Header	Solder	All	Male Pin	5 mm	0.197 in	Square	3 A	30	Tin	Through Hole Right Angle	Brass	50 V	UL94 V-0	Gray	0.079 in	2 mm	-25 °C	85 °C	Board to Cable/Wire	Shrouded - 4 Wall	Detent Lock	2
Sullins Connector Solutions SWR204-NRTN-D07-RA-GA	Polyamide (PA66) Nylon 6/6	0.118 in	3 mm	0.079 in	2 mm	Header	Solder	All	Male Pin	5 mm	0.197 in	Square	3 A	14	Tin	Through Hole Right Angle	Brass	50 V	UL94 V-0	Gray	0.079 in	2 mm	-25 °C	85 °C	Board to Cable/Wire	Shrouded - 4 Wall	Detent Lock	2
Sullins Connector Solutions SWR204-NRTN-D11-RA-GA	Polyamide (PA66) Nylon 6/6	0.118 in	3 mm	0.079 in	2 mm	Header	Solder	All	Male Pin	5 mm	0.197 in	Square	3 A	22 positions	Tin	Through Hole Right Angle	Brass	50 V	UL94 V-0	Gray	0.079 in	2 mm	-25 °C	85 °C	Board to Cable/Wire	Shrouded - 4 Wall	Detent Lock	2
Sullins Connector Solutions SWR204-NRTN-D05-ST-GA	Polyamide (PA66) Nylon 6/6	0.118 in	3 mm	0.079 in	2 mm	Header	Solder	All	Male Pin	6.5 mm	0.256 in	Square	3 A	10	Tin	Through Hole	Brass	50 V	UL94 V-0	Gray	0.079 in	2 mm	-25 °C	85 °C	Board to Cable/Wire	Shrouded - 4 Wall	Detent Lock	2
Sullins Connector Solutions SWR204-NRTN-D12-RA-GA	Polyamide (PA66) Nylon 6/6	0.118 in	3 mm	0.079 in	2 mm	Header	Solder	All	Male Pin	5 mm	0.197 in	Square	3 A	24	Tin	Through Hole Right Angle	Brass	50 V	UL94 V-0	Gray	0.079 in	2 mm	-25 °C	85 °C	Board to Cable/Wire	Shrouded - 4 Wall	Detent Lock	2
Sullins Connector Solutions SWR204-NRTN-D10-ST-GA	Polyamide (PA66) Nylon 6/6	0.118 in	3 mm	0.079 in	2 mm	Header	Solder	All	Male Pin	6.5 mm	0.256 in	Square	3 A	20	Tin	Through Hole	Brass	50 V	UL94 V-0	Gray	0.079 in	2 mm	-25 °C	85 °C	Board to Cable/Wire	Shrouded - 4 Wall	Detent Lock	2
Sullins Connector Solutions SWR204-NRTN-D13-ST-GA	Polyamide (PA66) Nylon 6/6	0.118 in	3 mm	0.079 in	2 mm	Header	Solder	All	Male Pin	6.5 mm	0.256 in	Square	3 A	26	Tin	Through Hole	Brass	50 V	UL94 V-0	Gray	0.079 in	2 mm	-25 °C	85 °C	Board to Cable/Wire	Shrouded - 4 Wall	Detent Lock	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.37
		10	$ 0.32
		100	$ 0.27
		500	$ 0.24
		2000	$ 0.22
		6000	$ 0.20
		10000	$ 0.19

Description

General part information

SWR204 Series

Connector Header Through Hole 8 position 0.079" (2.00mm)

Documents

Technical documentation and resources

No documents available
