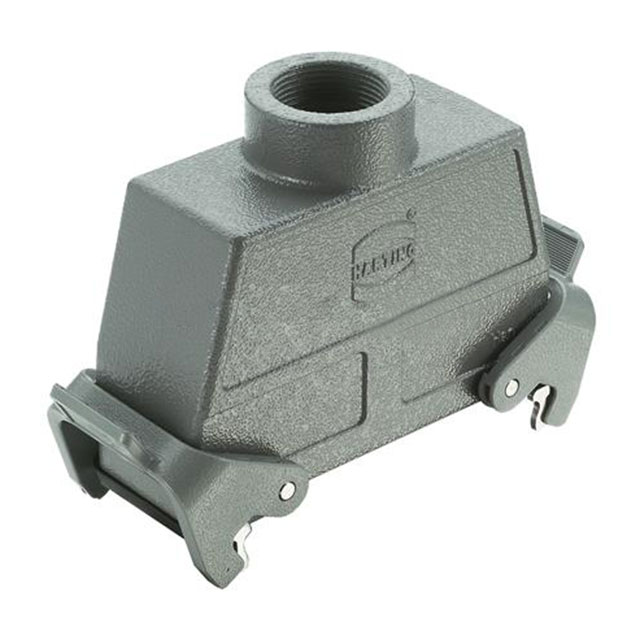

HAN B HOOD COUPLER HC 2 LEVERS PG 21

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09300240730

Active

HARTING Technology Group

HAN B HOOD COUPLER HC 2 LEVERS PG 21

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09300240730

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood Top
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	4.724 "
Size / Dimension [x]	120 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	3.087 "
Size / Dimension [z]	78.4 mm
Style	Bottom Entry
Thread Size	PG21

09300240 Series

Part	Style	Size	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Lock Location	Housing Color	Connector Type	Features	Housing Finish	Housing Material	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Thread Size
HARTING Technology Group 09300240304	Bottom Entry	24 B	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Gray	Base - Panel Mount	Cover	Powder Coated	Aluminum Die Cast	140 mm	1.138 "	5.512 "	28.9 mm	1.709 in	43.4 mm
HARTING Technology Group 09300240307	Bottom Entry	24 B	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Gray	Base - Panel Mount		Powder Coated	Aluminum Die Cast	140 mm	1.138 "	5.512 "	28.9 mm	1.709 in	43.4 mm
HARTING Technology Group 09300240730	Bottom Entry	24 B	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood Top	Gray	Hood - Coupling	Cable to Cable	Powder Coated	Aluminum Die Cast	120 mm	3.087 "	4.724 "		1.693 in		43 mm	78.4 mm	PG21
HARTING Technology Group 09300240585	Side Entry	24 B				Locking Clip (1) on Hood		Hood				120 mm	2.992 in	4.724 "		1.693 in		43 mm	76 mm	PG29
HARTING Technology Group 09300240481	Top Entry	24 B	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Hood	Gray	Hood		Powder Coated	Aluminum Die Cast	120 mm	2.992 in	4.724 "		1.693 in		43 mm	76 mm	PG29
HARTING Technology Group 09300240447	Dual Top Entry	24 B				Locking Clip (1) on Base Bottom		Hood				120 mm	2.992 in	4.724 "		1.693 in		43 mm	76 mm	PG21
HARTING Technology Group 09300240318	Bottom Entry	24 B	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Gray	Base - Panel Mount	Cover	Powder Coated	Aluminum Die Cast	140 mm	1.138 "	5.512 "	28.9 mm	1.709 in	43.4 mm
HARTING Technology Group 09300240221	Side Entry	24 B	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood	Gray	Base - Box Mount	Cover	Powder Coated	Aluminum Die Cast	144 mm	3.181 "	5.669 "	80.8 mm	2.244 "	57 mm			PG29
HARTING Technology Group 09300240461	Dual Top Entry	24 B	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Gray	Hood		Powder Coated	Aluminum Die Cast	120 mm	2.992 in	4.724 "		1.693 in		43 mm	76 mm	PG29
HARTING Technology Group 09300240410	Top Entry	24 B				Locking Clip (2) on Base Bottom		Hood				120 mm	2.992 in	4.724 "		1.693 in		43 mm	76 mm	PG29
