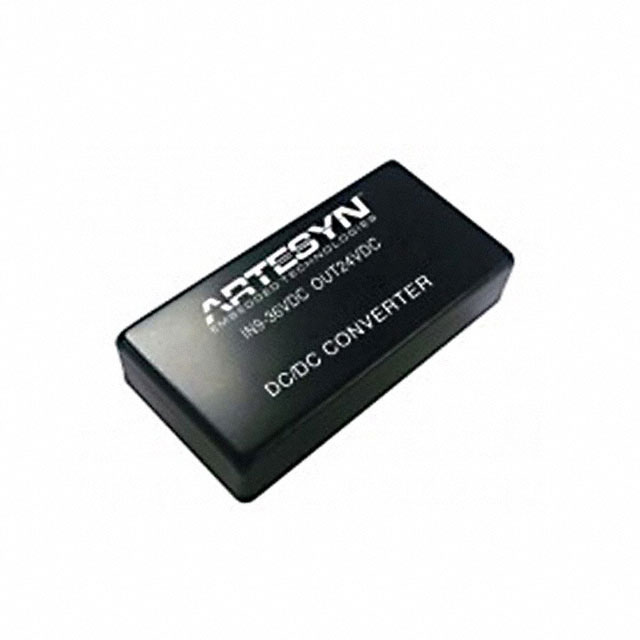

AEE02H36-L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 24V 50W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AEE02H36-L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 24V 50W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AEE02H36-L |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 2.08 A |
| Efficiency | 92 % |
| Features | OVP, OCP, OTP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 50 W |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.43 " |
| Size / Dimension [z] | 11 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 95.68 | |
| 5 | $ 94.92 | |||
| 10 | $ 94.17 | |||
| 30 | $ 88.09 | |||
| 50 | $ 85.05 | |||
| 100 | $ 80.80 | |||
Description
General part information
AEE02H Series
Isolated Module DC DC Converter 1 Output 24V 2.08A 18V - 75V Input
