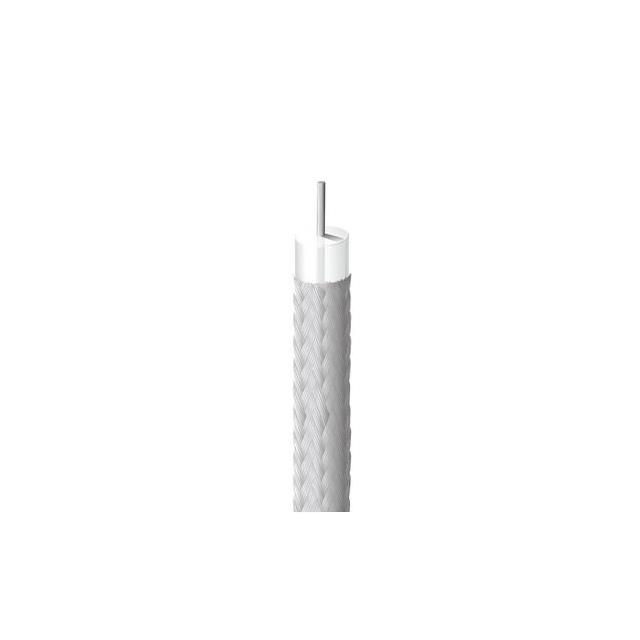

1674A TIN500

Active

Belden Inc.

#29 TFE BRD TINNED COAX

Search across all available documentation for this part.

Active

Belden Inc.

#29 TFE BRD TINNED COAX

Technical Specifications

Parameters and characteristics for this part

Specification	1674A TIN500

Cable Type	Coaxial
Conductor Material	Silver Coated, Steel, Copper Covered
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.034 "
Dielectric Diameter [diameter]	0.86 mm
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	50 Ohms
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	100 %
Shield Material	Copper, Tinned, Copper, Bare
Shield Type	Foil, Braid
VoP, Velocity of Propagation	70
Wire Gauge	29 AWG

Part	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Coverage	Length	Length	Shield Material	Wire Gauge	Dielectric Material	Cable Type	Impedance	Conductor Material	VoP, Velocity of Propagation	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand	Shield Type
Belden Inc. 1674A TIN500	0.034 "	0.86 mm	100 %	152.4 m	6000 in	Copper Bare Copper Tinned	29 AWG	Polytetrafluoroethylene (PTFE)	Coaxial	50 Ohms	Copper Covered Silver Coated Steel	70	200 °C	-70 °C	Solid	Braid Foil
Belden Inc. 1674A TIN50	0.034 "	0.86 mm	100 %	15.24 m	50 ft	Copper Bare Copper Tinned	29 AWG	Polytetrafluoroethylene (PTFE)	Coaxial	50 Ohms	Copper Covered Silver Coated Steel	70	200 °C	-70 °C	Solid	Braid Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 29 AWG 500.0' (152.40m) 50 Ohms
