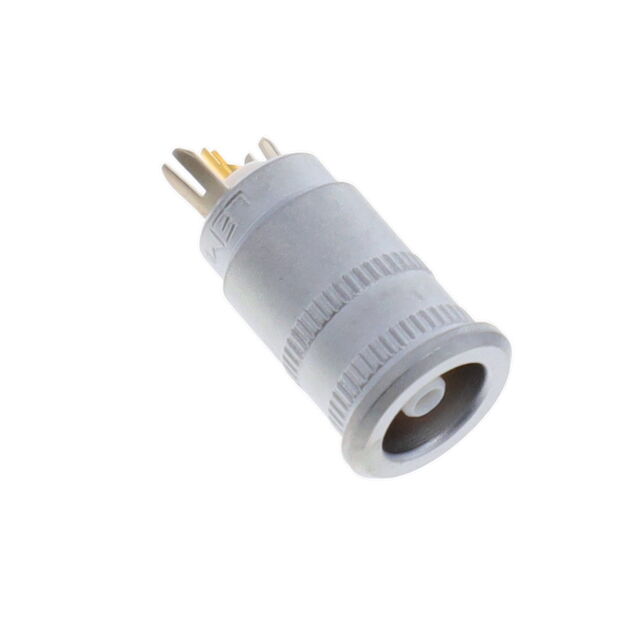

ERT.00.250.CTL

Active

LEMO

CONN NIMCAMAC RCPT STR 50 OHM

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMAC RCPT STR 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	ERT.00.250.CTL

Body Finish	Chrome
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	5000
Number of Ports	1
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	700 VDC

Part	Ingress Protection	Shield Termination	Center Contact Plating	Voltage Rating	Mating Cycles	Body Material	Connector Type	Connector Style	Impedance	Body Finish	Contact Termination	Dielectric Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Center Contact Material	Number of Ports
LEMO ERT.00.250.CTL	IP50	Solder	Gold	700 VDC	5000	Brass	Female Socket Receptacle	NIM-CAMAC CD/N 549	50 Ohms	Chrome	Solder Cup	Polytetrafluoroethylene (PTFE)	Push-Pull	-55 °C	260 ░C	Silver	Bronze	1
LEMO ERT.00.250.NTL	IP50	Solder	Gold	700 VDC	5000	Brass	Female Socket Receptacle	NIM-CAMAC CD/N 549	50 Ohms	Nickel	Solder Cup	Polytetrafluoroethylene (PTFE)	Push-Pull	-55 °C	260 ░C	Silver	Bronze	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
