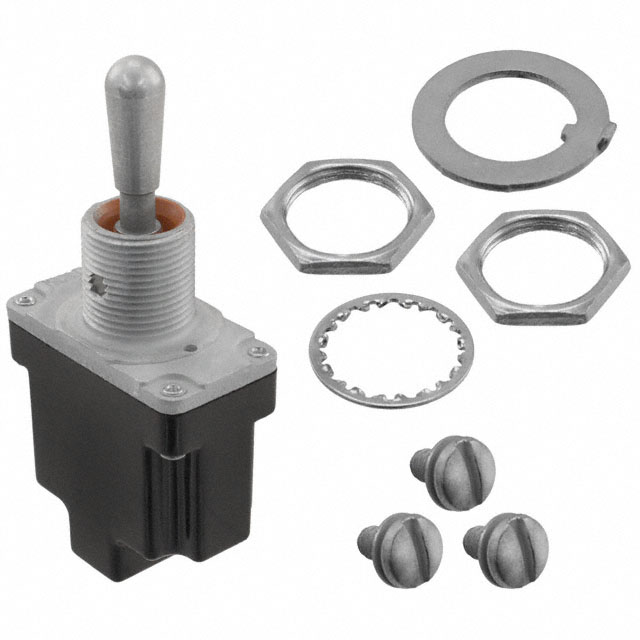

1TL887-7

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTL Series Datasheet Datasheet

1TL887-7

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 10A 125V

Deep-Dive with AI

DocumentsTL Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1TL887-7

Actuator Length [x]	17.27 mm
Actuator Material	Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	10 A
Illumination	Non-Illuminated
Ingress Protection	Environment Sealed
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	Mom-Off-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V

1TL8 Series

Part	Illumination	Ingress Protection	Circuit	Bushing Thread	Voltage Rating - AC	Actuator Material	Actuator Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Termination Style	Switch Function	Panel Cutout Dimensions [diameter]
Honeywell Sensing and Productivity Solutions 1TL887-7	Non-Illuminated	Environment Sealed	SPDT	15/32-32	125 V	Nickel Plated	Standard Round	10 A	71 °C	-65 ░C	17.27 mm	Screw Terminal	Mom-Off-Mom	12.4 mm
Honeywell Sensing and Productivity Solutions 1TL887-6F	Non-Illuminated	Environment Sealed	SPST-NO	15/32-32	125 V	Nickel Plated	Locking Lever	10 A	71 °C	-65 ░C	26.67 mm	Screw Terminal	Off-Mom	12.4 mm
Honeywell Sensing and Productivity Solutions 1TL887-1A	Non-Illuminated	Environment Sealed	SPDT	15/32-32	125 V	Nickel Plated	Locking Lever	15 A	71 °C	-65 ░C	26.67 mm	Screw Terminal	On-Off-On	12.4 mm
Honeywell Sensing and Productivity Solutions 1TL887-21E	Non-Illuminated	Environment Sealed	SPST	15/32-32	125 V	Nickel Plated	Locking Lever	15 A	71 °C	-65 ░C	26.67 mm	Screw Terminal	On-Off	12.4 mm
Honeywell Sensing and Productivity Solutions 1TL887-7N	Non-Illuminated	Environment Sealed	SPDT	15/32-32	125 V	Nickel Plated	Locking Lever	10 A	71 °C	-65 ░C	26.67 mm	Screw Terminal	Mom-Off-Mom	12.4 mm
Honeywell Sensing and Productivity Solutions 1TL84-7R	Non-Illuminated	Environment Sealed	SPDT	15/32-32	125 V		Locking Lever	10 A	71 °C	-65 ░C	28.2 mm	Screw Terminal	Mom-Off-Mom	12.4 mm
Honeywell Sensing and Productivity Solutions 1TL887-5L	Non-Illuminated	Environment Sealed	SPDT	15/32-32	125 V	Nickel Plated	Locking Lever	10 A	71 °C	-65 ░C	26.67 mm	Screw Terminal	On-Off-Mom	12.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 159.13

Description

General part information

1TL8 Series

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources

TL Series Datasheet

Datasheet
