PM324MRAOSB

Obsolete

Anderson Power Products, Inc.

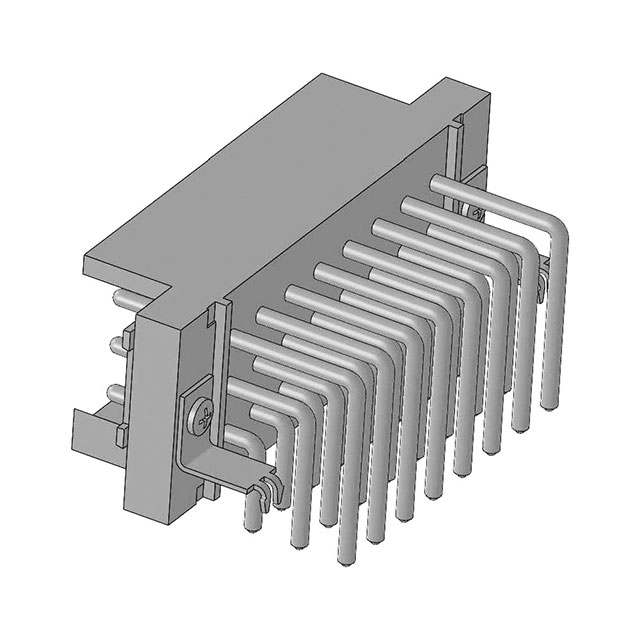

POWERMOD 3X24PIN RIGHT ANGLE PCB

Search across all available documentation for this part.

Obsolete

Anderson Power Products, Inc.

POWERMOD 3X24PIN RIGHT ANGLE PCB

Technical Specifications

Parameters and characteristics for this part

Specification	PM324MRAOSB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin Alloy
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin, Power
Current Rating (Amps)	30 A
Features	Board Lock, Mounting Bracket
Insulation Color	Black
Insulation Height	0.8 in
Insulation Height	20.32 mm
Insulation Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	180 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	5 mm
Pitch - Mating	0.197 "
Row Spacing - Mating	5 mm
Row Spacing - Mating	0.197 in
Shrouding	Shrouded - 2 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 V

Part	Material Flammability Rating	Number of Positions Loaded	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Features	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Style	Mounting Type	Number of Positions	Contact Finish - Mating	Connector Type	Insulation Height	Insulation Height	Current Rating (Amps)	Termination	Contact Material	Voltage Rating	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Material
Anderson Power Products, Inc. PM324MRAOSB	UL94 V-0	All	Circular	-55 °C	180 °C	Tin Alloy	3	5 mm	0.197 in	10 çin	0.25 çm	Shrouded - 2 Wall	Board Lock Mounting Bracket	0.15 in	3.81 mm	Male Pin Power	Board to Board Cable	Through Hole Right Angle	24	Gold	Header	0.8 in	20.32 mm	30 A	Solder	Copper Alloy	600 V	Black	5 mm	0.197 "	Polyphenylene Sulfide (PPS)
