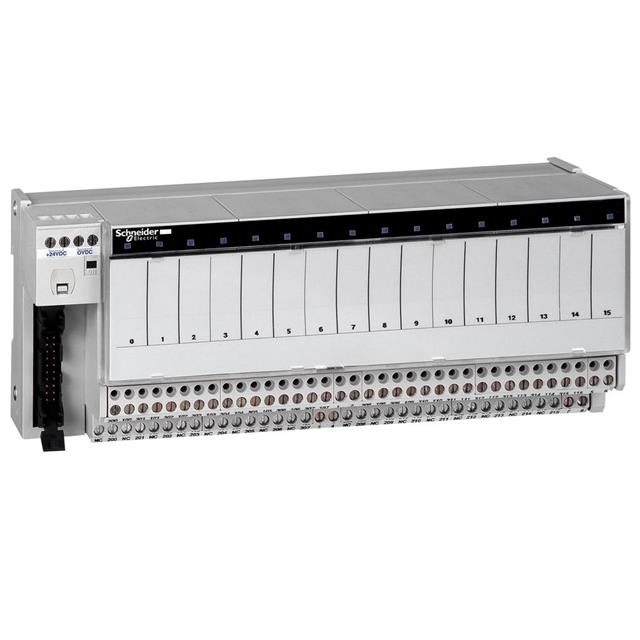

ABE7R16T212

Active

SQUARE D BY SCHNEIDER ELECTRIC

TELEFAST 2 OUTPUT MOD-16 CHAN-W EM RELAY ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

ABE7R16T212

Active

SQUARE D BY SCHNEIDER ELECTRIC

TELEFAST 2 OUTPUT MOD-16 CHAN-W EM RELAY ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ABE7R16T212

Approval Agency	EAC, UL, CSA, DNV, GL
Coil Type	Non Latching
Coil Voltage [Max]	30 VDC
Coil Voltage [Min]	19 VDC
Contact Form	SPST-NO (1 Form A)
Features	Lighted Indicator
Mounting Type	DIN Rail
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-5 °C
Relay Type	General Purpose
Termination Style	Screw Terminal

ABE7R Series

Part	Coil Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching	Contact Form	Coil Voltage	Approval Agency	Contact Rating (Current)	Switching Voltage [Max]	Operate Time	Mounting Type	Relay Type	Release Time	Must Release Voltage	Must Operate Voltage	Features	Coil Voltage [Min]	Coil Voltage [Max]
SQUARE D BY SCHNEIDER ELECTRIC ABE7R16S212	Non Latching	Screw Terminal	-5 °C	60 °C	300 W 2500 VA	SPST-NO (1 Form A)	24 VDC	CSA DNV EAC GL UL	10 A	30 VDC 250 VAC	10 ms	DIN Rail	General Purpose	5 ms	2.4 VDC
SQUARE D BY SCHNEIDER ELECTRIC ABE7R16S111	Non Latching	Screw Terminal	-5 °C	60 °C	360 W 3000 VA		24 VDC	CSA DNV EAC GL UL	12 A	30 VDC 250 VAC	10 ms	DIN Rail	General Purpose	6 ms	2.4 VDC	19.2 VDC
SQUARE D BY SCHNEIDER ELECTRIC ABE7R16T370	Non Latching	Screw Terminal	-5 °C	60 °C				CSA DNV EAC GL UL				DIN Rail	General Purpose				Lighted Indicator	19 VDC	30 VDC
SQUARE D BY SCHNEIDER ELECTRIC ABE7R16S210	Non Latching	Screw Terminal	-5 °C	60 °C	300 W 2500 VA	SPST-NO (1 Form A)	24 VDC		10 A	30 VDC 250 VAC	12 ms	DIN Rail	General Purpose	10 ms	2.4 VDC	19.7 VDC
SQUARE D BY SCHNEIDER ELECTRIC ABE7R16T230	Non Latching	Screw Terminal	-5 °C	60 °C		SPDT (1 Form C)		CSA DNV EAC GL UL				DIN Rail	General Purpose				Lighted Indicator	19 VDC	30 VDC
SQUARE D BY SCHNEIDER ELECTRIC ABE7R16T212	Non Latching	Screw Terminal	-5 °C	60 °C		SPST-NO (1 Form A)		CSA DNV EAC GL UL				DIN Rail	General Purpose				Lighted Indicator	19 VDC	30 VDC
SQUARE D BY SCHNEIDER ELECTRIC ABE7R16T210	Non Latching	Screw Terminal	-5 °C	60 °C		SPST-NO (1 Form A)		CSA DNV EAC GL UL				DIN Rail	General Purpose				Lighted Indicator	19 VDC	30 VDC
SQUARE D BY SCHNEIDER ELECTRIC ABE7R08S111	Non Latching	Screw Terminal	-5 °C	60 °C	360 W 3000 VA		24 VDC	CSA DNV EAC GL UL	12 A	30 VDC 250 VAC	10 ms	DIN Rail	General Purpose	6 ms	2.4 VDC	19.2 VDC
SQUARE D BY SCHNEIDER ELECTRIC ABE7R08S210	Non Latching	Screw Terminal	-5 °C	60 °C	300 W 2500 VA	SPST-NO (1 Form A)	24 VDC	CSA DNV EAC GL UL	10 A	30 VDC 250 VAC	10 ms	DIN Rail	General Purpose	5 ms	2.4 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1152.25
Newark	Each	1	$ 1229.61
		3	$ 1172.09
		5	$ 1136.13
		10	$ 1092.99
		25	$ 1071.42

Description

General part information

ABE7R Series

General Purpose Relay SPST-NO (1 Form A) 19 ~ 30VDC Coil DIN Rail

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
