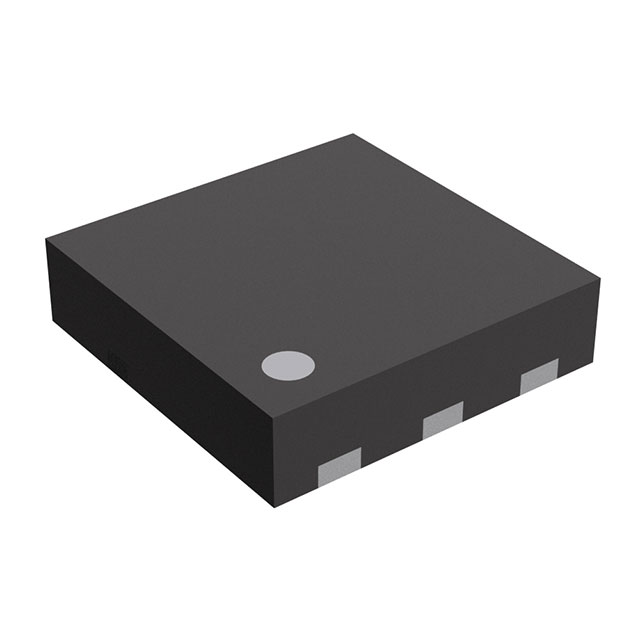

NJG1175KG1-TE3
ActiveNisshinbo Micro Devices Inc
IC AMP 802.11AC 5.925GHZ 6DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJG1175KG1-TE3
ActiveNisshinbo Micro Devices Inc
IC AMP 802.11AC 5.925GHZ 6DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJG1175KG1-TE3 |
|---|---|
| Current - Supply | 13 mA |
| Frequency [Max] | 5.925 GHz |
| Frequency [Min] | 4.9 GHz |
| Gain | 16 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 0.95 dB |
| P1dB | 9 dBm |
| Package / Case | 6-XFDFN Exposed Pad |
| RF Type | LTE, ISM, WLAN, 802.11a/n/ac/ax |
| Supplier Device Package | 6-DFN (1.6x1.6) |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.56 | |
| 6000 | $ 0.53 | |||
| 15000 | $ 0.51 | |||
Description
General part information
NJG1175 Series
RF Amplifier IC 802.11a/n/ac/ax, ISM, LTE, WLAN 4.9GHz ~ 5.925GHz 6-DFN (1.6x1.6)
