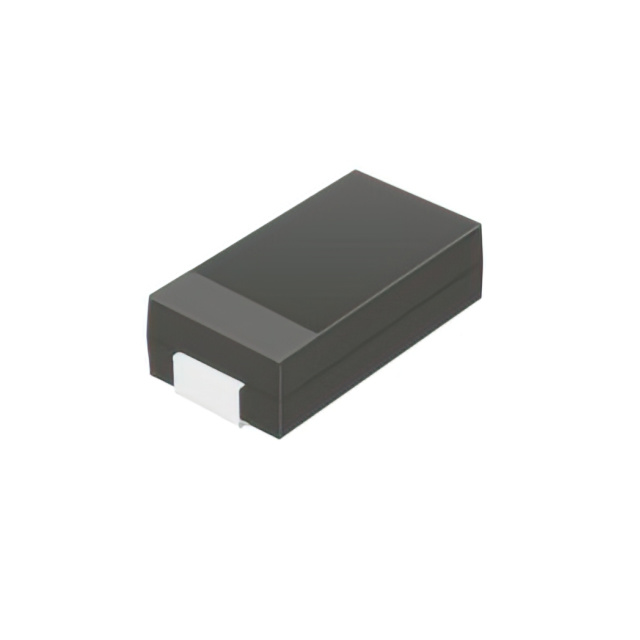

3.0SMCJ58CA-HF

Active

Comchip Technology

DIODE TVS 58V 3000W SMC BI-DIR

Deep-Dive with AI

Search across all available documentation for this part.

3.0SMCJ58CA-HF

Active

Comchip Technology

DIODE TVS 58V 3000W SMC BI-DIR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3.0SMCJ58CA-HF

Applications	General Purpose
Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	32.1 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	SMC, DO-214AB
Power - Peak Pulse	3000 W
Power - Peak Pulse	3 kW
Power Line Protection	False
Supplier Device Package	DO-214AB (SMC)
Type	Zener
Voltage - Breakdown (Min) [Min]	64.4 V
Voltage - Clamping (Max) @ Ipp [Max]	93.6 V
Voltage - Reverse Standoff (Typ)	58 V

3.0SMCJ Series

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse	Power - Peak Pulse	Applications	Package / Case	Voltage - Clamping (Max) @ Ipp [Max]	Mounting Type	Type	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Bidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp
Comchip Technology 3.0SMCJ7.5CA-HF	150 °C	-65 °C	7.5 V	3000 W	3 kW	General Purpose	DO-214AB SMC	12.9 V	Surface Mount	Zener	8.33 V	DO-214AB (SMC)	1	232.6 A
Comchip Technology 3.0SMCJ26A-HF	150 °C	-65 °C	26 V	3000 W	3 kW	General Purpose	DO-214AB SMC	42.1 V	Surface Mount	Zener	28.9 V	DO-214AB (SMC)		71.3 A	1
Comchip Technology 3.0SMCJ8.5A-HF	150 °C	-65 °C	8.5 V	3000 W	3 kW	General Purpose	DO-214AB SMC		Surface Mount	Zener	9.44 V	DO-214AB (SMC)		208.3 A	1	14.4 V
Comchip Technology 3.0SMCJ16CA-HF	150 °C	-65 °C	16 V	3000 W	3 kW	General Purpose	DO-214AB SMC	26 V	Surface Mount	Zener		DO-214AB (SMC)	1	115.4 A
Comchip Technology 3.0SMCJ64CA-HF	150 °C	-65 °C	64 V	3000 W	3 kW	General Purpose	DO-214AB SMC	103 V	Surface Mount	Zener	71.1 V	DO-214AB (SMC)	1	29.1 A
Comchip Technology 3.0SMCJ58CA-HF	150 °C	-65 °C	58 V	3000 W	3 kW	General Purpose	DO-214AB SMC	93.6 V	Surface Mount	Zener	64.4 V	DO-214AB (SMC)	1	32.1 A
Comchip Technology 3.0SMCJ33CA-HF	150 °C	-65 °C	33 V	3000 W	3 kW	General Purpose	DO-214AB SMC		Surface Mount	Zener	36.7 V	DO-214AB (SMC)	1	56.3 A		53.3 V
Comchip Technology 3.0SMCJ60A-HF	150 °C	-65 °C	60 V	3000 W	3 kW	General Purpose	DO-214AB SMC	96.8 V	Surface Mount	Zener	66.7 V	DO-214AB (SMC)		31 A	1
Comchip Technology 3.0SMCJ85CA-HF	150 °C	-65 °C	85 V	3000 W	3 kW	General Purpose	DO-214AB SMC		Surface Mount	Zener	94.4 V	DO-214AB (SMC)	1	21.9 A		137 V
Comchip Technology 3.0SMCJ54A-HF	150 °C	-65 °C	54 V	3000 W	3 kW	General Purpose	DO-214AB SMC	87.1 V	Surface Mount	Zener	60 V	DO-214AB (SMC)		34.4 A	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.36
		6000	$ 0.34
		9000	$ 0.31
		30000	$ 0.31

Description

General part information

3.0SMCJ Series

93.6V Clamp 32.1A Ipp Tvs Diode Surface Mount DO-214AB (SMC)

Documents

Technical documentation and resources

No documents available
