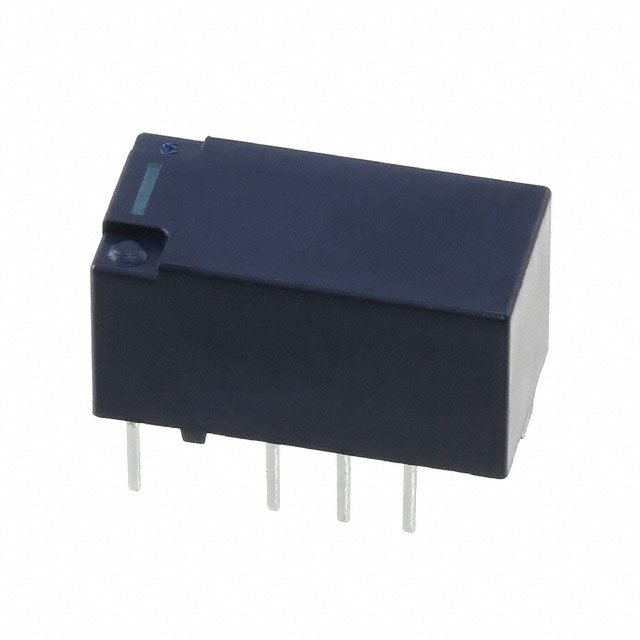

TXS2-3V-1

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 10MA 3V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 10MA 3V

Technical Specifications

Parameters and characteristics for this part

Specification	TXS2-3V-1

Approval Agency	BSI, cURus
Coil Current	16.7 mA
Coil Resistance	180 Ohms
Coil Type	Non Latching
Contact Form	DPDT (2 Form C)
Contact Material	Silver Palladium (AgPd), Gold (Au)
Contact Rating (Current)	10 mA
Mounting Type	Through Hole
Must Operate Voltage	2.4 VDC
Must Release Voltage	0.3 VDC
Operate Time	5 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Fully
Switching Voltage	10 VDC
Termination Style	PC Pin

Part	Must Operate Voltage	Termination Style	Coil Resistance	Release Time	Switching Voltage	Contact Form	Contact Rating (Current)	Relay Type	Seal Rating	Must Release Voltage	Contact Material	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Operate Time	Mounting Type	Approval Agency
Panasonic Electric Works TXS2-3V-1	2.4 VDC	PC Pin	180 Ohms	5 ms	10 VDC	DPDT (2 Form C)	10 mA	General Purpose	Sealed - Fully	0.3 VDC	Gold (Au) Silver Palladium (AgPd)	16.7 mA	-40 °C	70 °C	Non Latching	5 ms	Through Hole	BSI cURus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) Through Hole
