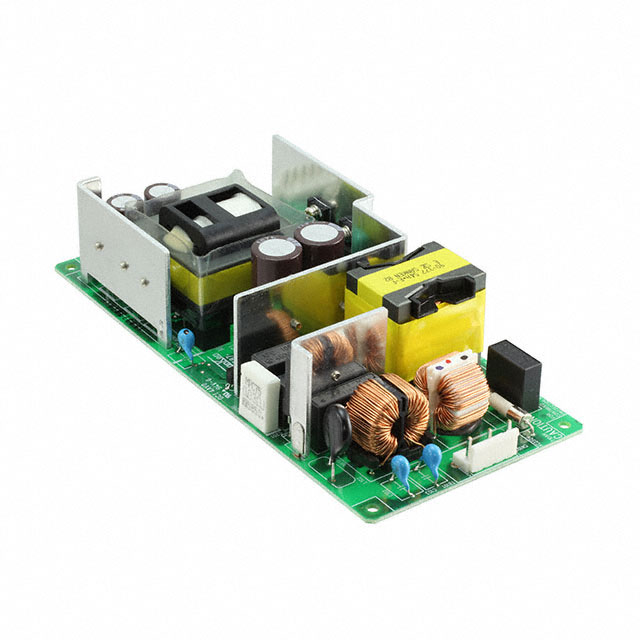

SWF240P-36

Obsolete

Sanken Electric USA Inc.

AC/DC CONVERTER 36V 240W

Deep-Dive with AI

Search across all available documentation for this part.

SWF240P-36

Obsolete

Sanken Electric USA Inc.

AC/DC CONVERTER 36V 240W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SWF240P-36

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	6.7 A
Efficiency	92 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Power (Watts)	240 W
Size / Dimension [x]	7.09 in
Size / Dimension [x]	180 mm
Size / Dimension [y]	84 mm
Size / Dimension [y]	3.31 "
Size / Dimension [z]	1.65 "
Size / Dimension [z]	42 mm
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	36 V

SWF240 Series

Part	Applications	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation	Approval Agency	Current - Output 1	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Features	Number of Outputs	Voltage - Output 1	Type	Power (Watts)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Sanken Electric USA Inc. SWF240P-36	ITE (Commercial)	92 %	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	CE	6.7 A	-10 °C	158 °F	Adjustable Output Universal Input	1	36 V	Open Frame	240 W	Chassis Mount
Sanken Electric USA Inc. SWF240P-24-R	ITE (Commercial)	92 %	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	CE cURus	10 A	-10 °C	158 °F		1	24 V	Open Frame	240 W	Chassis Mount
Sanken Electric USA Inc. SWF240P-48-L-R-T	ITE (Commercial)	92 %	2.32 in	8.35 in	98 mm	212 mm	59 mm	3.86 in	3000 V	CE	5 A			Adjustable Output PFC Remote On/Off Universal Input	1	48 V	Enclosed	240 W	Chassis Mount	-10 °C	70 °C
Sanken Electric USA Inc. SWF240P-24-L	ITE (Commercial)	92 %	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	CE cURus	10 A	-10 °C	158 °F	Adjustable Output Universal Input	1	24 V	Open Frame	240 W	Chassis Mount
Sanken Electric USA Inc. SWF240P-24-LC-T	ITE (Commercial)	92 %	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	CE cURus	10 A	-10 °C	158 °F	Adjustable Output Universal Input	1	24 V	Open Frame	240 W	Chassis Mount
Sanken Electric USA Inc. SWF240P-24-L-R-T	ITE (Commercial)	92 %	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	CE cURus	10 A	-10 °C	158 °F		1	24 V	Open Frame	240 W	Chassis Mount
Sanken Electric USA Inc. SWF240P-48-L-R	ITE (Commercial)	92 %	2.32 in	8.35 in	98 mm	212 mm	59 mm	3.86 in	3000 V	CE	5 A			Adjustable Output PFC Remote On/Off Universal Input	1	48 V	Enclosed	240 W	Chassis Mount	-10 °C	70 °C
Sanken Electric USA Inc. SWF240P-48-R	ITE (Commercial)	92 %	1.46 "	6.3 "	75 mm	160 mm	37 mm	2.95 in	3000 V	CE	5 A			Adjustable Output PFC Remote On/Off Universal Input	1	48 V	Open Frame	240 W	Chassis Mount	-10 °C	70 °C
Sanken Electric USA Inc. SWF240P-24-R-T	ITE (Commercial)	92 %	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	CE cURus	10 A	-10 °C	158 °F		1	24 V	Open Frame	240 W	Chassis Mount
Sanken Electric USA Inc. SWF240P-36-LC	ITE (Commercial)	92 %	2.32 in	8.35 in	98 mm	212 mm	59 mm	3.86 in	3000 V	CE	6.7 A			Adjustable Output PFC Universal Input	1	36 V	Enclosed	240 W	Chassis Mount	-10 °C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 79.57
		5	$ 74.96

Description

General part information

SWF240 Series

Open Frame AC DC Converters 1 Output 36V 85 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
