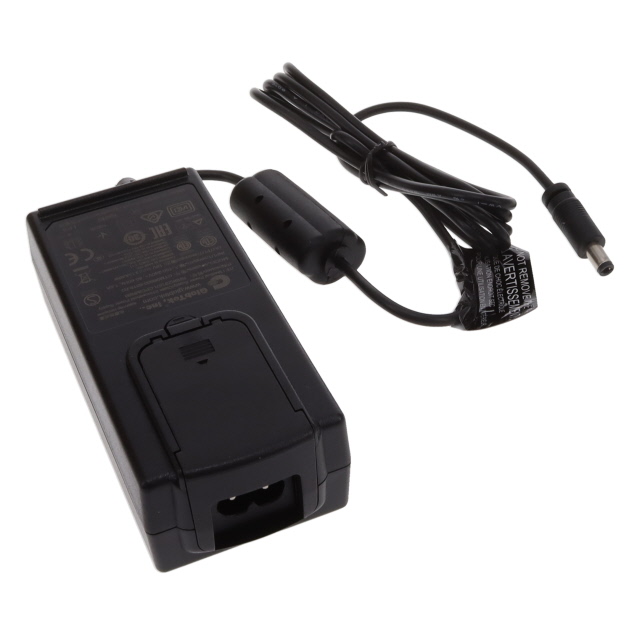

RR9KZ3157LCPCIMR6B

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 19V 60W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 19V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	RR9KZ3157LCPCIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	EAC, VCCI, ETL, LPS, CE, CB, RCM, UKRSepro, PSE, CCC, BSMI, cETLus, UL
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	3.15 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop, Wall Mount
Input Connector	IEC 320-C8, Multi-Blade (Sold Separately)
Input Type	Cord, Multi-Blade
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector [diameter]	2.5 mm, 5.5 mm
Output Connector [x]	10 mm
Polarization	Positive Center
Power (Watts)	60 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	53.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [z]	36.6 mm
Size / Dimension [z]	1.44 "
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	19 V

Part	Output Connector [diameter]	Output Connector [x]	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Input Type	Cord Length	Cord Length	Standard Number	Form	No Load Power Consumption [Max]	Polarization	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Current - Output (Max) [Max]	Applications	Approval Agency	Power (Watts)	Region Utilized	Voltage - Output	Output Connector	Cord Length
GlobTek, Inc. RR9KZ3157LCPCIMR6B	2.5 mm 5.5 mm	10 mm	90 VAC	264 VAC	IEC 320-C8 Multi-Blade (Sold Separately)	Cord Multi-Blade	1.5 m	59 in	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Desktop Wall Mount	150 mW	Positive Center	36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	-20 C	40 °C	CoC Tier 2 Level VI	3.15 A	Household Appliances ITE (Commercial) Medical	BSMI CB CCC CE cETLus EAC ETL LPS PSE RCM UKRSepro UL VCCI	60 W	International	19 V
GlobTek, Inc. RR9KZ3157T00CIMR6B			90 VAC	264 VAC	IEC 320-C8 Multi-Blade (Sold Separately)	Cord Multi-Blade	47.2 in		1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Desktop Wall Mount	150 mW		36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	-20 C	40 °C	Level VI	3.157 A	Household Appliances ITE (Commercial) Medical	BSMI CB CCC CE cETLus EAC ETL LPS PSE RCM UKRSepro UL VCCI	60 W	International	19 V	1.3mm x 3.5mm Barrel Plug Kit	1.2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19V 60 W AC/DC External Desktop, Wall Mount (Class II) Adapter Cord, Multi-Blade (Sold Separately) Input
