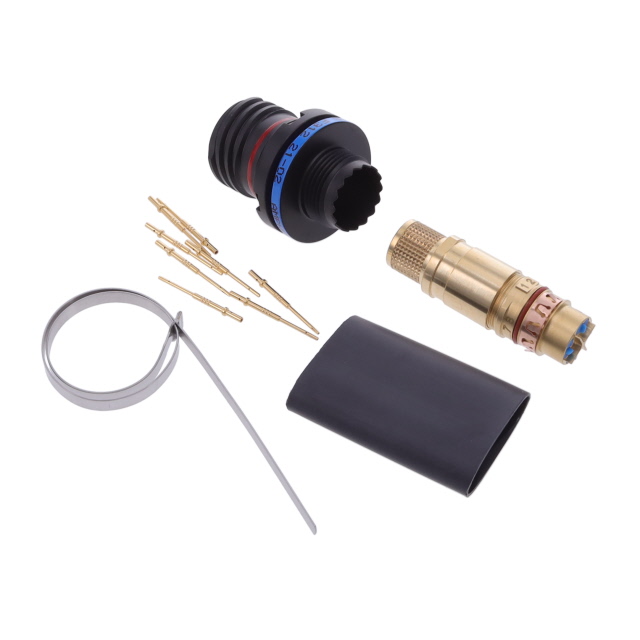

TV07UCOMUSB3CZN11SF312

Active

Amphenol Socapex

CONN RCPT FMALE 8POS CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

TV07UCOMUSB3CZN11SF312

Active

Amphenol Socapex

CONN RCPT FMALE 8POS CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TV07UCOMUSB3CZN11SF312

Applications	Military, Aerospace
Color	Black
Connector Type	Receptacle, Female Sockets
Features	Heat Shrink
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line), Panel Mount
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Black Zinc Nickel
Shell Material	Aluminum
Shell Size - Insert	11
Shielding	Unshielded
Termination	Crimp

TV07UCO Series

Part	Mounting Type	Termination	Shielding	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Connector Type	Shell Finish	Number of Positions	Primary Material	Orientation	Shell Material	Shell Size - Insert	Color	Features
Amphenol Socapex TV07UCOMUSB3CIW11SF059	Panel Mount Through Hole	Solder	Unshielded	Bulkhead - Front Side Nut	-55 °C	125 °C	Aerospace Military	Receptacle Female Sockets	Olive Drab Cadmium	8	Metal	N	Aluminum	11	Olive Drab
Amphenol Socapex TV07UCOMUSB3CZN11SF312	Free Hanging (In-Line) Panel Mount	Crimp	Unshielded	Bulkhead - Front Side Nut	-55 °C	125 °C	Aerospace Military	Receptacle Female Sockets	Black Zinc Nickel	8	Metal	N	Aluminum	11	Black	Heat Shrink
Amphenol Socapex TV07UCOMUSB3CZN11S	Free Hanging (In-Line) Panel Mount	Crimp	Unshielded	Bulkhead - Front Side Nut	-55 °C	125 °C	Aerospace Military	Receptacle Female Sockets	Black Zinc Nickel	8	Metal	N	Aluminum	11	Black	Heat Shrink
Amphenol Socapex TV07UCOMUSB3SF11S	Free Hanging (In-Line) Panel Mount		Unshielded	Bulkhead - Front Side Nut	-55 °C	125 °C	Aerospace Military	Receptacle Female Sockets	Nickel	8	Metal	N	Aluminum	11	Silver	Heat Shrink
Amphenol Socapex TV07UCOMUSB3SW11SF312	Free Hanging (In-Line) Panel Mount		Unshielded	Bulkhead - Front Side Nut	-55 °C	125 °C	Aerospace Military	Receptacle Female Sockets	Olive Drab Cadmium	8	Metal	N	Aluminum	11	Olive Drab	Heat Shrink
Amphenol Socapex TV07UCOMUSB3CW11SF312	Free Hanging (In-Line) Panel Mount	Crimp	Unshielded	Bulkhead - Front Side Nut	-55 °C	125 °C	Aerospace Military	Receptacle Female Sockets	Olive Drab Cadmium	8	Metal	N	Aluminum	11	Olive Drab	Heat Shrink
Amphenol Socapex TV07UCOMUSB3CIZN11SF059	Panel Mount Through Hole	Solder	Unshielded	Bulkhead - Front Side Nut	-55 °C	125 °C	Aerospace Military	Receptacle Female Sockets	Black Zinc Nickel	8	Metal	N	Aluminum	11	Black
Amphenol Socapex TV07UCOMUSB3SZN11S	Free Hanging (In-Line) Panel Mount		Unshielded	Bulkhead - Front Side Nut	-55 °C	125 °C	Aerospace Military	Receptacle Female Sockets	Black Zinc Nickel	8	Metal	N	Aluminum	11	Black	Heat Shrink
Amphenol Socapex TV07UCOMUSB3SW11S	Free Hanging (In-Line) Panel Mount		Unshielded	Bulkhead - Front Side Nut	-55 °C	125 °C	Aerospace Military	Receptacle Female Sockets	Olive Drab Cadmium	8	Metal	N	Aluminum	11	Olive Drab	Heat Shrink
Amphenol Socapex TV07UCOMUSB3CIF11SF059	Panel Mount Through Hole	Solder	Unshielded	Bulkhead - Front Side Nut	-55 °C	125 °C	Aerospace Military	Receptacle Female Sockets	Nickel	8	Metal	N	Aluminum	11	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 311.55
		10	$ 337.98
		25	$ 325.82

Description

General part information

TV07UCO Series

8 (Data) Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

No documents available
