1.5SMC30A_R1_00001

Active

Panjit International Inc.

GLASS PASSIVATED JUNCTION TRANSI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1.5SMC30A_R1_00001

Active

Panjit International Inc.

GLASS PASSIVATED JUNCTION TRANSI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1.5SMC30A_R1_00001

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	36 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

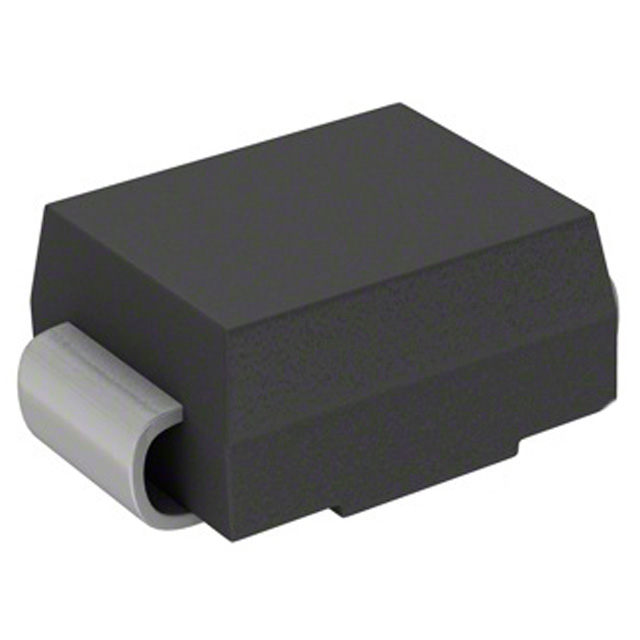

Package / Case	SMC, DO-214AB
Power - Peak Pulse	1.5 kW
Power - Peak Pulse	1500 W
Power Line Protection	False
Supplier Device Package	DO-214AB (SMC)
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	28.5 V
Voltage - Clamping (Max) @ Ipp [Max]	41.4 V
Voltage - Reverse Standoff (Typ)	25.6 V

1.5SMC Series

...

Part	Mounting Type	Type	Voltage - Clamping (Max) @ Ipp [Max]	Unidirectional Channels [custom]	Package / Case	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Bidirectional Channels [custom]	Qualification	Grade	Voltage - Clamping (Max) @ Ipp
Panjit International Inc. 1.5SMCJ10A_R1_00001	Surface Mount	Zener	17 V	1	DO-214AB SMC	General Purpose	-55 °C	150 °C	DO-214AB (SMC)	11.1 V	1.5 kW	1500 W	88.2 A	10 V
Panjit International Inc. 1.5SMC36A_R1_00001	Surface Mount	Zener	49.9 V	1	DO-214AB SMC	General Purpose	-55 °C	150 °C	DO-214AB (SMC)	34.2 V	1.5 kW	1500 W	30 A	30.8 V
Panjit International Inc. 1.5SMCJ170CA_R1_00001	Surface Mount	Zener	275 V		DO-214AB SMC	General Purpose	-55 °C	150 °C	DO-214AB (SMC)	189 V	1.5 kW	1500 W	5.5 A	170 V	1
Panjit International Inc. 1.5SMC120AS_R1_00001	Surface Mount	Zener	165 V	1	DO-214AB SMC	General Purpose	-55 °C	150 °C	DO-214AB (SMC)	114 V	1.5 kW	1500 W	9.1 A	102 V
Panjit International Inc. 1.5SMCJ90A_R1_00001	Surface Mount	Zener	146 V	1	DO-214AB SMC	General Purpose	-55 °C	150 °C	DO-214AB (SMC)	100 V	1.5 kW	1500 W	10.3 A	90 V
Panjit International Inc. 1.5SMCJ6.0CA_R1_00001	Surface Mount	Zener	10.3 V		DO-214AB SMC	General Purpose	-55 °C	150 °C	DO-214AB (SMC)	6.67 V	1.5 kW	1500 W	145.6 A	6 V	1
Panjit International Inc. 1.5SMCJ40AS_R1_00001	Surface Mount	Zener	64.5 V	1	DO-214AB SMC	General Purpose	-55 °C	150 °C	DO-214AB (SMC)	44.4 V	1.5 kW	1500 W	23.2 A	40 V
Panjit International Inc. 1.5SMC13A-AU_R1_000A1	Surface Mount	Zener		1	DO-214AB SMC		-55 °C	150 °C	DO-214AB (SMC)	12.4 V	1.5 kW	1500 W	82 A	11.1 V		AEC-Q101	Automotive	18.2 V
Panjit International Inc. 1.5SMCJ51CA_R1_00001	Surface Mount	Zener			DO-214AB SMC	General Purpose	-55 °C	150 °C	DO-214AB (SMC)		1.5 kW	1500 W	18.2 A	51 V	1			82.4 V
Panjit International Inc. 1.5SMC30A_R1_00001	Surface Mount	Zener	41.4 V	1	DO-214AB SMC	General Purpose	-55 °C	150 °C	DO-214AB (SMC)	28.5 V	1.5 kW	1500 W	36 A	25.6 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.53
	Digi-Reel®	1	$ 1.53
	Tape & Reel (TR)	800	$ 0.27
		1600	$ 0.25
		2400	$ 0.23
		4000	$ 0.22
		5600	$ 0.21
		8000	$ 0.20
		20000	$ 0.18
		40000	$ 0.18

Description

General part information

1.5SMC Series

41.4V Clamp 36A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
