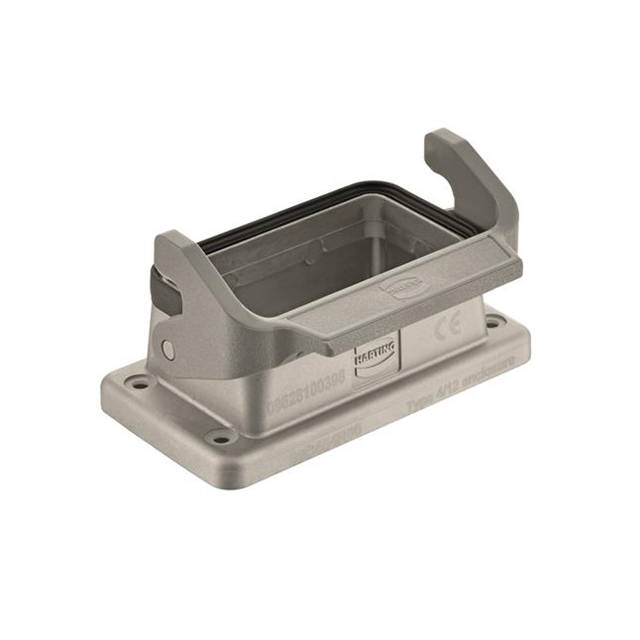

09628100398

Active

HARTING Technology Group

10B EMC BULKHEAD REAR FIT HOUSIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09628100398

Active

HARTING Technology Group

10B EMC BULKHEAD REAR FIT HOUSIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09628100398

Connector Type	Base - Panel Mount
Housing Material	Die Cast, Aluminum
Ingress Protection	IP66
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	98 mm
Size / Dimension [x]	3.858 "
Size / Dimension [y]	54 mm
Size / Dimension [y]	2.126 in
Size / Dimension [z]	35.7 mm
Size / Dimension [z]	1.406 "
Style	Bottom Entry

09628100 Series

Part	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Style	Connector Type	Size	Ingress Protection	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Housing Material	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension	Housing Finish	Size / Dimension [x]	Size / Dimension [z]	Thread Size
HARTING Technology Group 09628100398	Locking Clip (1) on Base Bottom	125 °C	-40 °C	Bottom Entry	Base - Panel Mount	10B	IP66	98 mm	3.858 "	35.7 mm	54 mm	1.406 "	2.126 in	Aluminum Die Cast
HARTING Technology Group 09628100901	Locking Clip (1) on Base Bottom	125 °C	-40 °C	Bottom Entry	Base - Panel Mount 90°	10B	IP65 - Dust Tight Water Resistant	89 mm	3.504 in			2.154 in	3.228 "	Aluminum Die Cast	82 mm	54.7 mm
HARTING Technology Group 09628100301	Locking Clip (2) on Base Bottom	125 °C	-40 °C	Bottom Entry	Base - Panel Mount	10B	IP65 - Dust Tight Water Resistant		3.661 inches			1.075 in	1.709 in	Aluminum Die Cast			27.3 mm 43.4 mm 93 mm	EMC Coating
HARTING Technology Group 09628100315	Locking Clip (2) on Base Bottom	125 °C	-40 °C	Bottom Entry	Base - Panel Mount	10B	IP66	98 mm	3.858 "	35.7 mm	54 mm	1.406 "	2.126 in	Aluminum Die Cast
HARTING Technology Group 09628100422	Locking Clip (2) on Base Bottom	125 °C	-40 °C	Top Entry	Hood	10B	IP65 - Dust Tight Water Resistant	2.858 in			43 mm			Aluminum Die Cast	1.693 in	2.835 in			72.6 mm	72 mm	PG21
HARTING Technology Group 09628100232
HARTING Technology Group 09628100392	Locking Clip (2) on Base Bottom	125 °C	-40 °C	Bottom Entry	Base - Panel Mount	10B	IP66	98 mm	3.858 "	35.7 mm	54 mm	1.406 "	2.126 in	Aluminum Die Cast
HARTING Technology Group 09628100522	Locking Clip (2) on Base Bottom	125 °C	-40 °C	Side Entry	Hood	10B	IP65 - Dust Tight Water Resistant	2.858 in			43 mm			Aluminum Die Cast	1.693 in	2.835 in			72.6 mm	72 mm	PG21

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.38
		10	$ 33.61

Description

General part information

09628100 Series

Base - Panel Mount Connector Bottom Entry 10B IP66 - Dust Tight, Water Resistant

Documents

Technical documentation and resources
