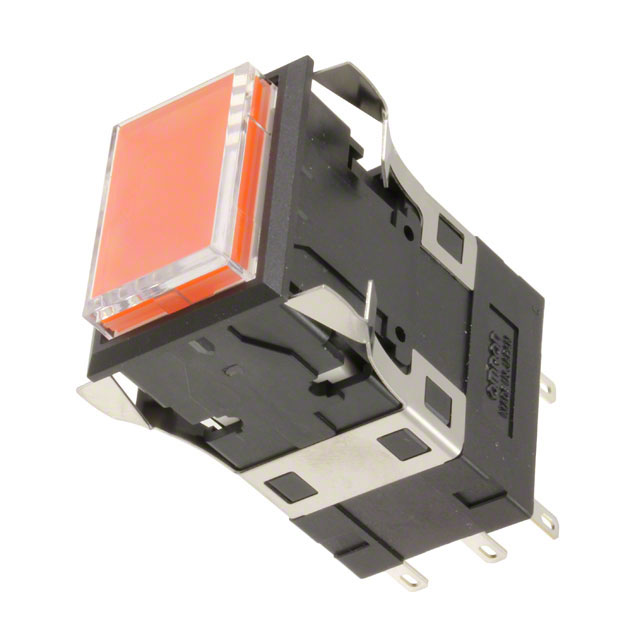

A3PJ-90A11-24AO

Obsolete

Omron Electronics Inc-EMC Div

SWITCH PUSHBUTTON SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

A3PJ-90A11-24AO

Obsolete

Omron Electronics Inc-EMC Div

SWITCH PUSHBUTTON SPDT 5A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A3PJ-90A11-24AO

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	SPDT
Color - Actuator/Cap	Orange
Current Rating (Amps)	5 A, 4 A
Electrical Life	100000 Cycles
Illumination Type, Color	LED, Orange
Illumination Voltage (Nominal)	24 VAC/DC
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Panel Cutout Dimensions [x]	30.5 mm
Panel Cutout Dimensions [y]	23.5 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

A3PJ Series

Part	Actuator Type	Requires	(Select First, Then Apply Filters) Compatible Series	Illumination	Illumination Voltage (Nominal)	Mounting Type	Actuator Marking	Circuit	Illumination Type, Color	Voltage Rating - DC	Voltage Rating - AC	Type	Switch Function	Termination Style	Termination Style	Termination Style	Current Rating (Amps)	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Ingress Protection	Accessory Type
Omron Electronics Inc-EMC Div A3PJ-5733-24E	Pushbutton Rectangular	Contact Block(s)	A3P Omron	Illuminated - Green
Omron Electronics Inc-EMC Div A3PJ-4102
Omron Electronics Inc-EMC Div A3PJ-5201
Omron Electronics Inc-EMC Div A3PJ-90A11-24AO	Rectangular Button				24 VAC/DC	Panel Mount Snap-In	No Marking	SPDT	LED Orange	30 V	125 V	Illuminated Standard	On-Mom	0.11 in	Quick Connect Solder	2.8 mm	4 A 5 A	Orange	30.5 mm	23.5 mm	1000000 Cycles	-10 °C	40 °C	100000 Cycles	IP40
Omron Electronics Inc-EMC Div A3PJ-4010																										Barrier
Omron Electronics Inc-EMC Div A3PJ-5024
Omron Electronics Inc-EMC Div A3PJN-5050
Omron Electronics Inc-EMC Div A3PJ-90B11-24ER
Omron Electronics Inc-EMC Div A3PJ-90A11-24APW	Rectangular Button				24 VAC/DC	Panel Mount Snap-In	No Marking	SPDT	LED White	30 V	125 V	Illuminated Standard	On-Mom	0.11 in	Quick Connect Solder	2.8 mm	4 A 5 A	White	30.5 mm	23.5 mm	1000000 Cycles	-10 °C	40 °C	100000 Cycles	IP40
Omron Electronics Inc-EMC Div A3PJ-90C11-24AG	Rectangular Button				24 VAC/DC	Panel Mount Snap-In	No Marking	DPDT	Green LED	30 V	125 V	Illuminated Standard	On-Mom	0.11 in	Quick Connect Solder	2.8 mm	4 A 5 A	Green	30.5 mm	23.5 mm	1000000 Cycles	-10 °C	40 °C	100000 Cycles	IP40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 99.48

Description

General part information

A3PJ Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
