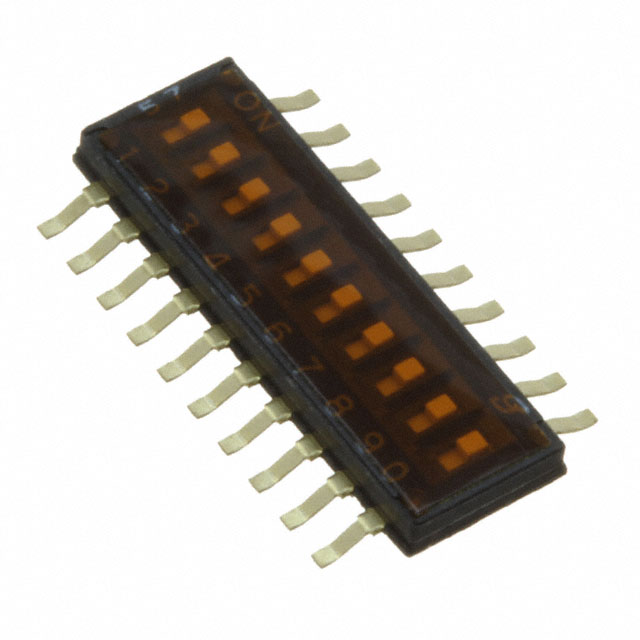

97R10ST

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mechanical Life	Contact Finish	Body Material	Pitch [x]	Pitch [x]	Number of Positions	Circuit	Termination Style	Height Above Board [z]	Height Above Board [z]	Actuator Level	Actuator Type	Length [x]	Length [x]	Mounting Type	Contact Material	Features
Grayhill Inc. 97R10T	24 VDC	85 °C	-40 °C	25 mA	1000 Cycles	Gold	Nylon Polyamide (PA)	0.05 in	1.27 mm	10	SPST	Gull Wing	0.061 "	1.55 mm	Flush Recessed	Slide (Standard)	13.93 mm	0.548 in	Surface Mount	Copper Alloy
Grayhill Inc. 97R10ST	24 VDC	85 °C	-40 °C	25 mA	1000 Cycles	Gold	Nylon Polyamide (PA)	0.05 in	1.27 mm	10	SPST	Gull Wing	0.061 "	1.55 mm	Flush Recessed	Slide (Standard)	13.93 mm	0.548 in	Surface Mount	Copper Alloy	Tape Seal
Grayhill Inc. 97R10SRT	24 VDC	85 °C	-40 °C	25 mA	1000 Cycles	Gold	Nylon Polyamide (PA)	0.05 in	1.27 mm	10	SPST	Gull Wing	0.061 "	1.55 mm	Flush Recessed	Slide (Standard)	13.93 mm	0.548 in	Surface Mount	Copper Alloy	Tape Seal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
