273I,AL

Active

Serpac

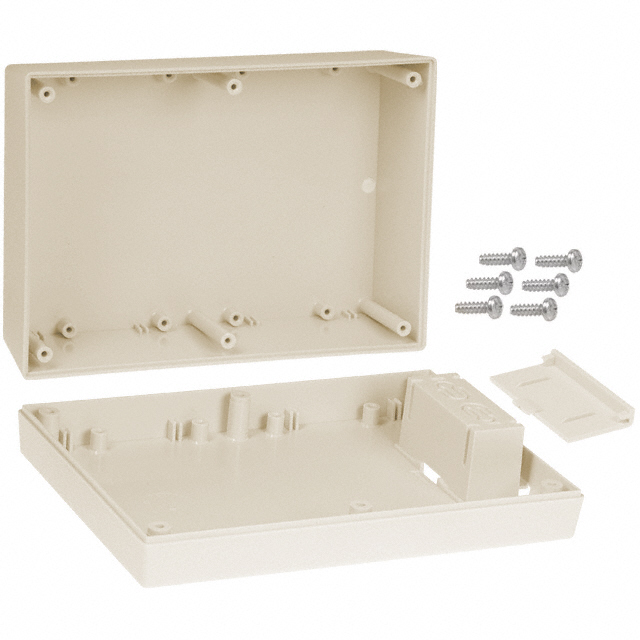

BOX ABS ALMOND 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	273I,AL

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	227.7 g
Weight	0.502 lb

Part	Material	Features	Features	Material Flammability Rating	Ratings	Container Type	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Area (L x W)	Area (L x W)	Design	Thickness	Thickness	Color
Serpac 273I,AL	Plastic ABS	Battery Compartment PCB Supports	9 V	UL94 HB	IP40 NEMA 1	Box	63.5 mm	2.5 in	123.95 mm	174.75 mm	4.88 in	6.88 in	227.7 g	0.502 lb	33.6 in²	217 cm²	Hand Held Split Sides	2.54 mm	0.1 in	Almond
Serpac 273I,BK	Plastic ABS	Battery Compartment PCB Supports	9 V	UL94 HB	IP40 NEMA 1	Box	63.5 mm	2.5 in	123.95 mm	174.75 mm	4.88 in	6.88 in	227.7 g	0.502 lb	33.6 in²	217 cm²	Hand Held Split Sides	2.54 mm	0.1 in	Black
Serpac 273I,GY	Plastic ABS	Battery Compartment PCB Supports	9 V	UL94 HB	IP40 NEMA 1	Box	63.5 mm	2.5 in	123.95 mm	174.75 mm	4.88 in	6.88 in	227.7 g	0.502 lb	33.6 in²	217 cm²	Hand Held Split Sides	2.54 mm	0.1 in	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.19

General part information

Box Plastic, ABS Almond Hand Held, Split Sides 6.880" L x 4.880" W (174.75mm x 123.95mm) X 2.500" (63.50mm)
